ICON 2025 Toyota 4Runner 2WD Front 2.5 VS RR CDCV Coilover Kit - 58796C

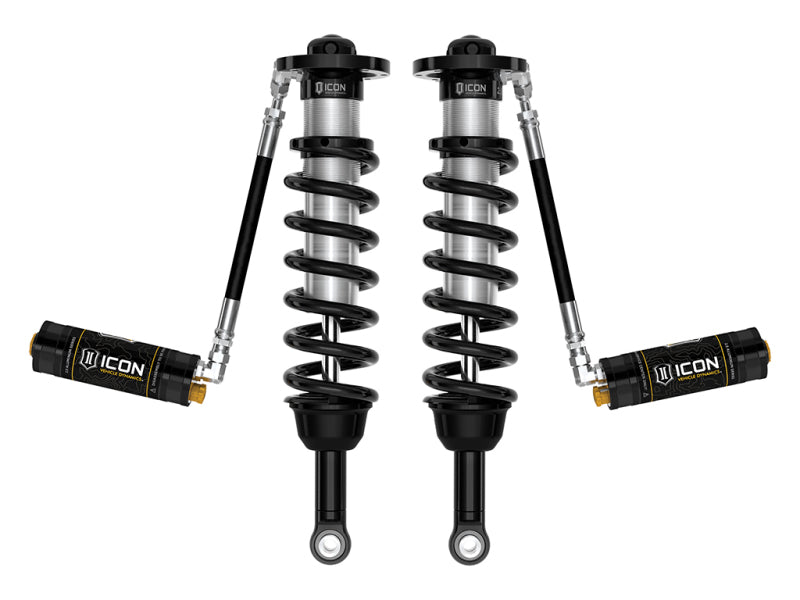

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDCV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner 2WD. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving, their large 2.5” shock body with increased piston surface area over stock components, and their optimized extended length taylored specifically for 2WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with 2.5 Aluminum Series CDCV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #232: Only fits 2WD models. Installation onto 4WD models will result in damage to front axles.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine

Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset

Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset

APPLICATION NOTE #150: Shocks are fully serviceable

OEM Wheels & Tires Fitment: Yes

Features & Benefits

• 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length optimized for 2WD models yields maximum front wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Downloads & Resources

• Installation Instructions (PDF)
