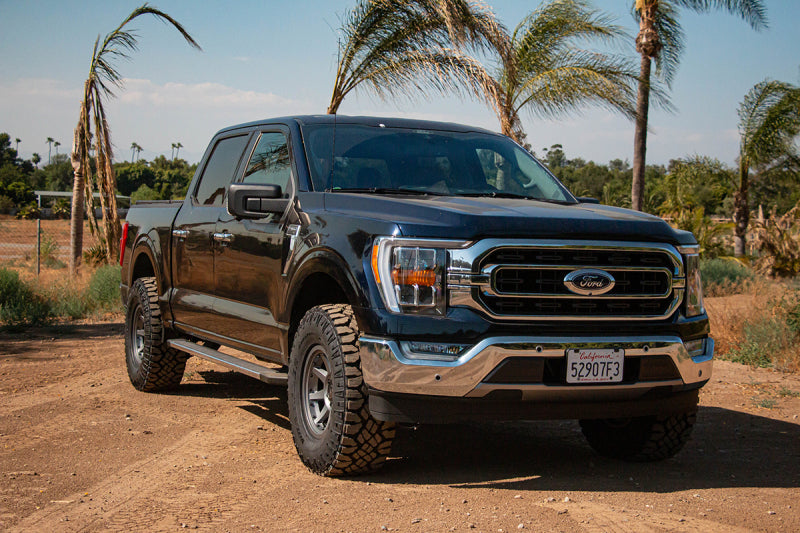

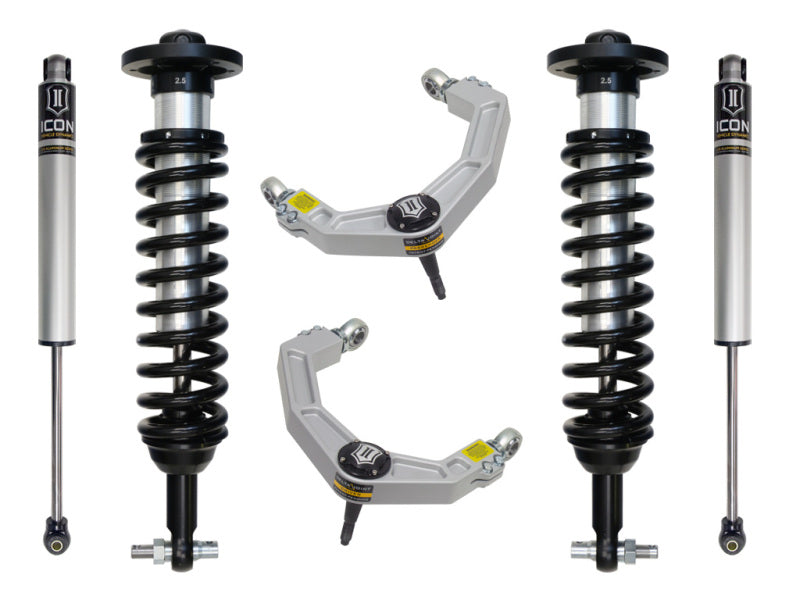

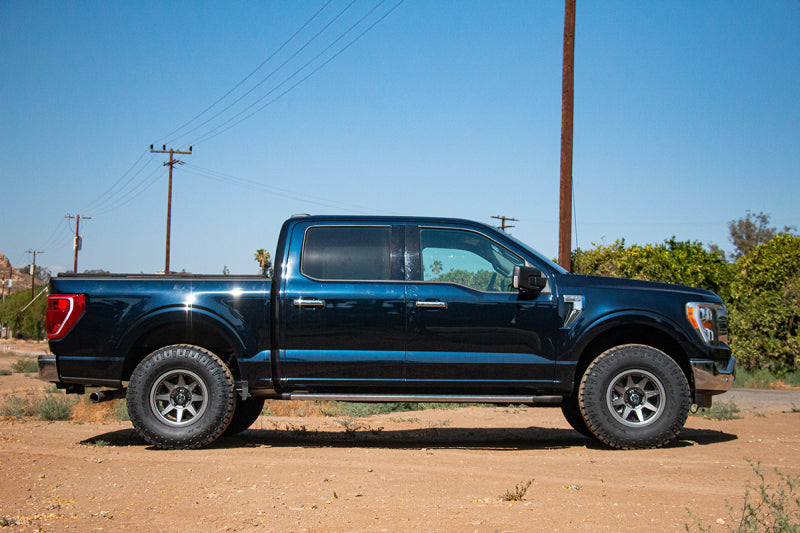

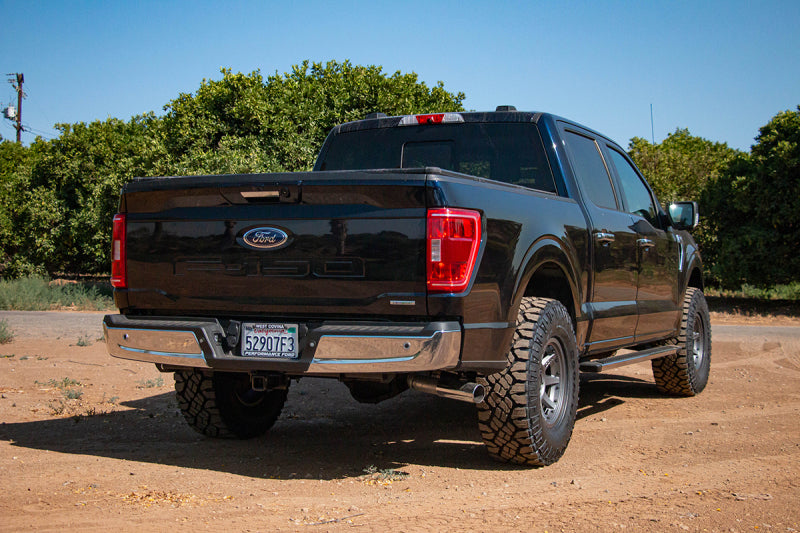

Icon 21-24 Ford F150 4WD 0-2.75in Stage 2 Suspension System - K93112

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle

TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock

TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension

TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset

APPLICATION NOTE #234: Will not fit F-150 Tremor or F-150 Raptor

APPLICATION NOTE #1: Only fits 4WD models

OEM Wheels & Tires Fitment: Yes

Ships in multiple boxes

Features & Benefits

• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Adjustable coilovers from 0-2.75" of lift height
• High strength alloy CNC machined lower bar pins
