ICON 22-24 Toyota Tundra 6in Lift Stage 7 Suspension System - Billet - CDXS - K53277D

The ICON Vehicle Dynamics Stage 7 6" Suspension System with CDXS delivers an advanced level of suspension performance, adjustability, and durability for the 2022-2026 Toyota Tundra. Designed for drivers seeking enhanced tuning capability and maximum confidence in demanding environments, this system combines ICON's 2.5 Series shock technology with premium suspension components engineered to improve ride quality, articulation, and off-road performance. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs provide superior damping control, increased fluid capacity, and improved heat dissipation for consistent performance during extended off-road use. Equipped with ICON CDXS technology, all shock absorbers feature independent high-speed and low-speed compression damping adjustment, allowing precise tuning of handling response, ride quality, and suspension aggressiveness across a wide range of driving conditions. The system allows for up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles.

APPLICATION NOTE #141: Tundra/Sequoia equipped with Automatic Leveling Headlights or Load-Leveling Rear Height Control Air Suspension part # 55153 is also required

APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

APPLICATION NOTE #450: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road, TRD Sport, or TRD Rally suspension packages and TRD Pro.

APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.

APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.

Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.

APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset

APPLICATION NOTE #381: Requires minimum of 20" diameter wheels

OEM Wheels & Tires Fitment: No

Features & Benefits

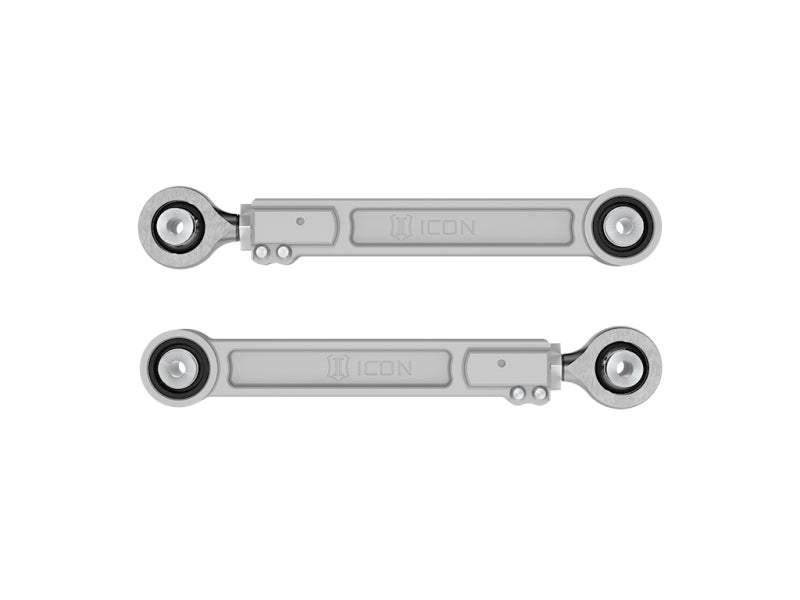

• Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system

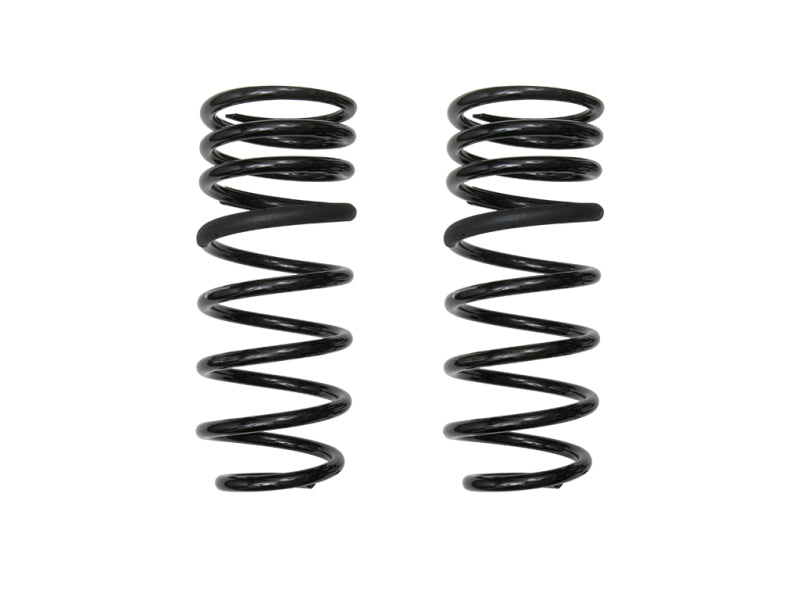

• ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness

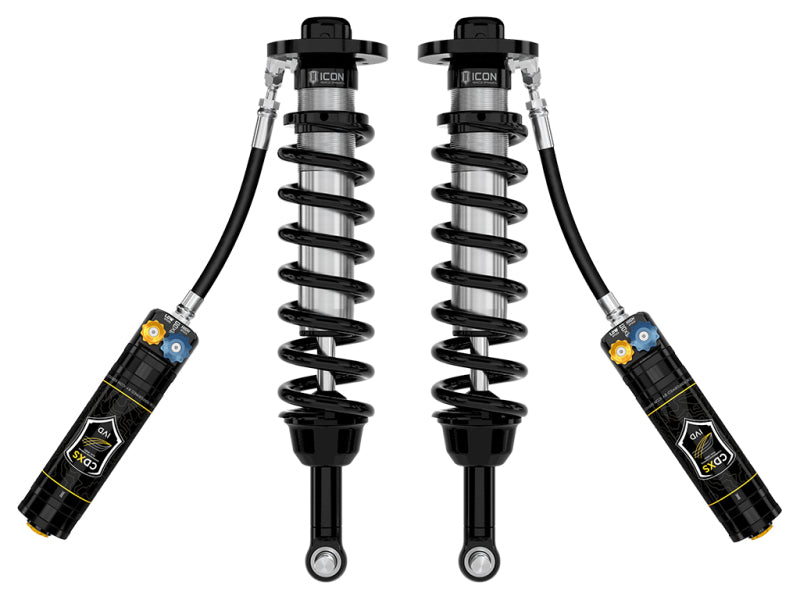

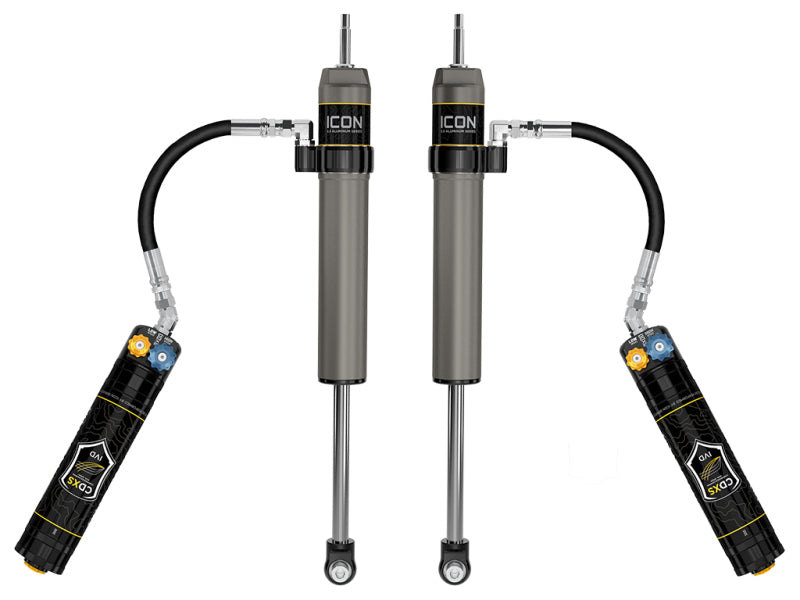

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

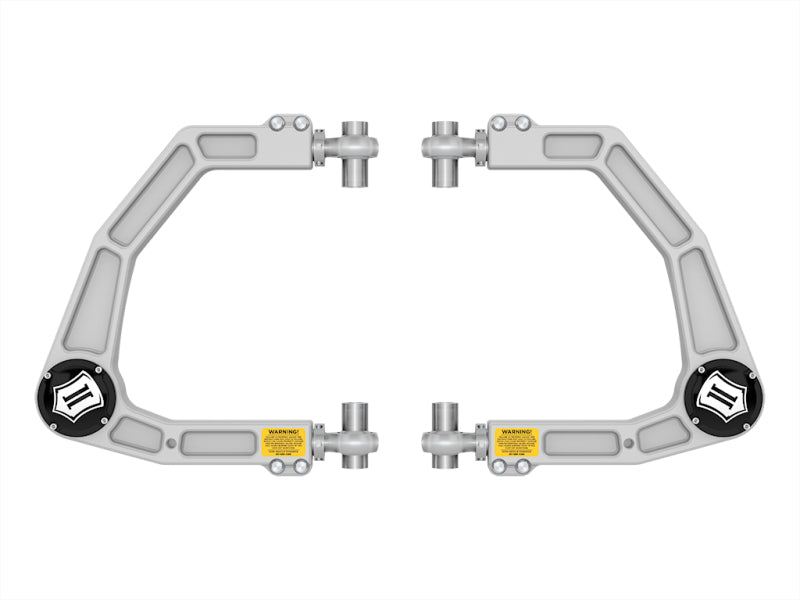

• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)

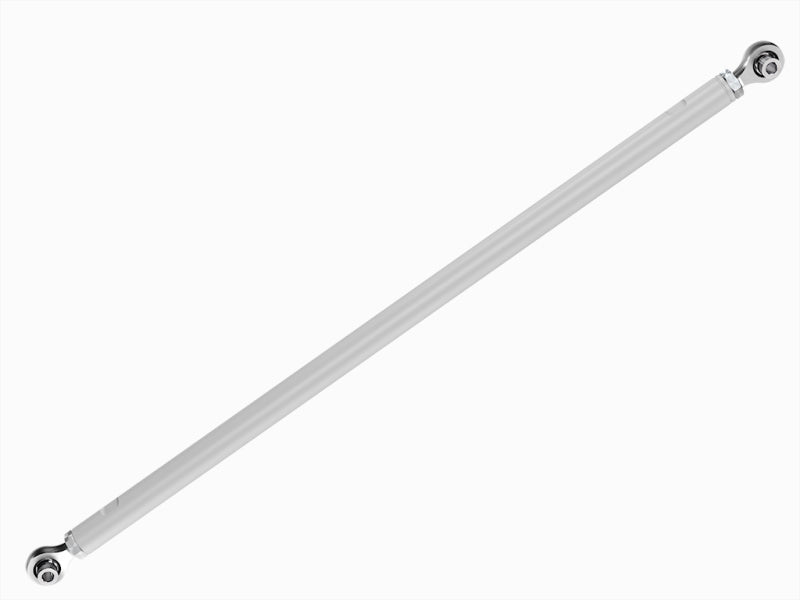

• On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance

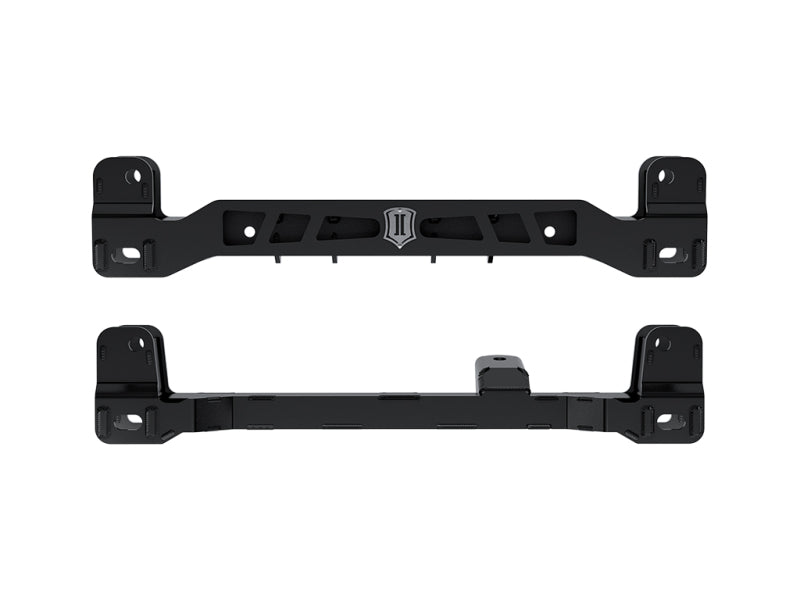

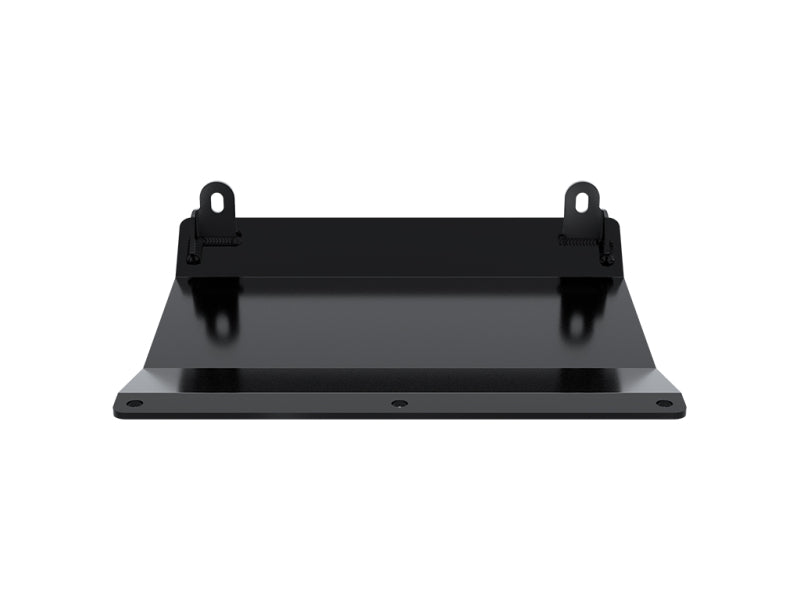

• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

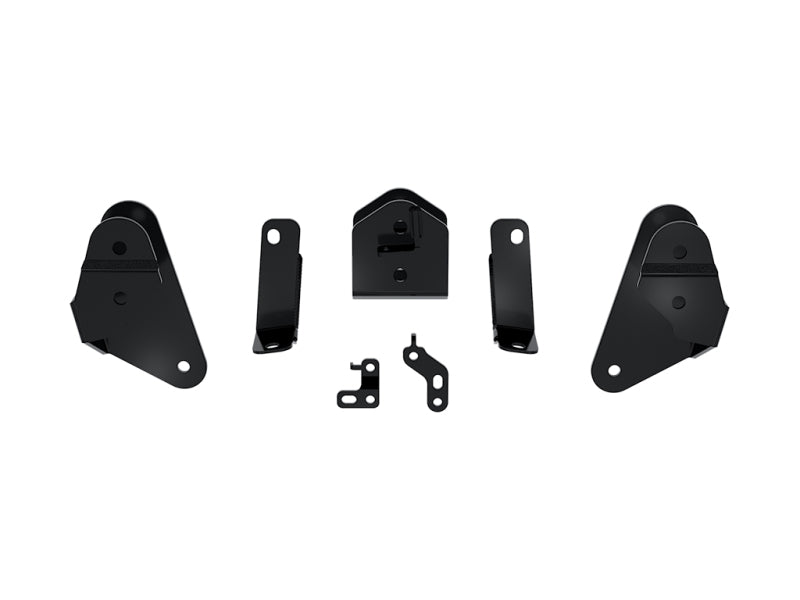

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
• Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends

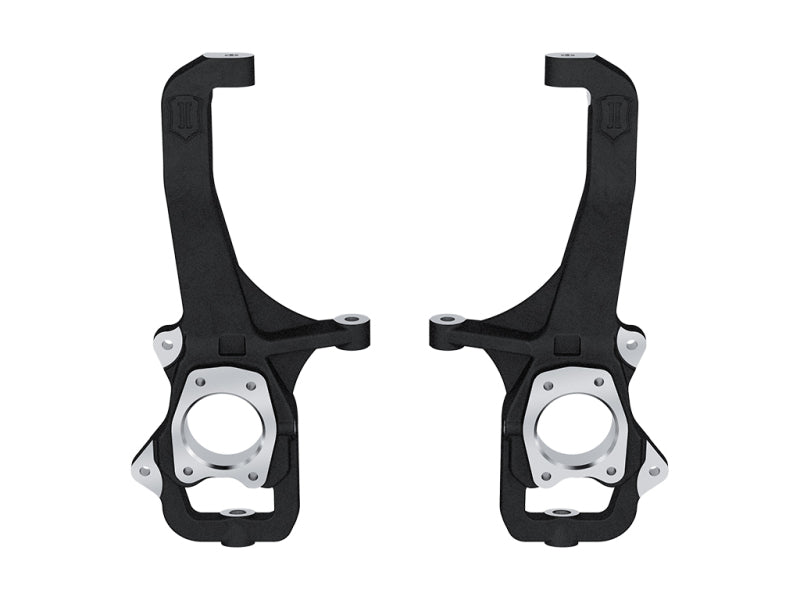

• Single piece high-strength ductile iron steering knuckles with built-in 4" drop

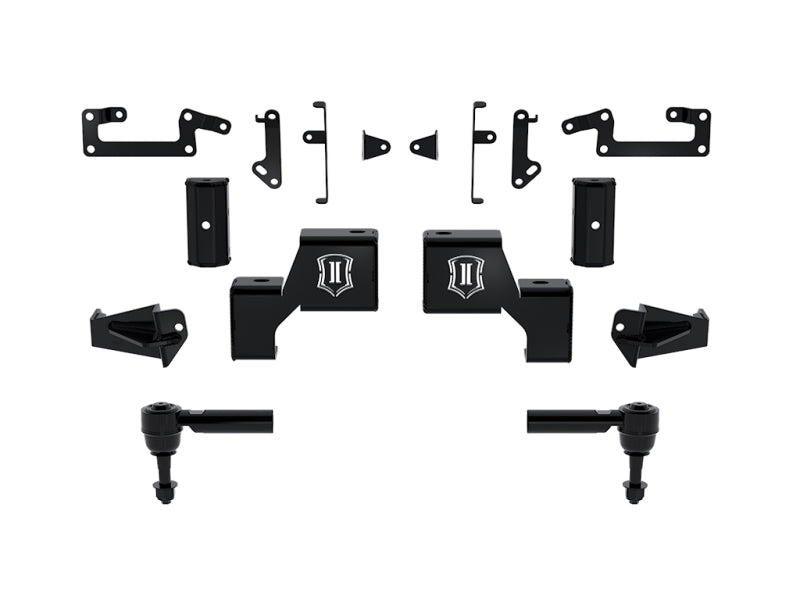

• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• Maintains factory track width
