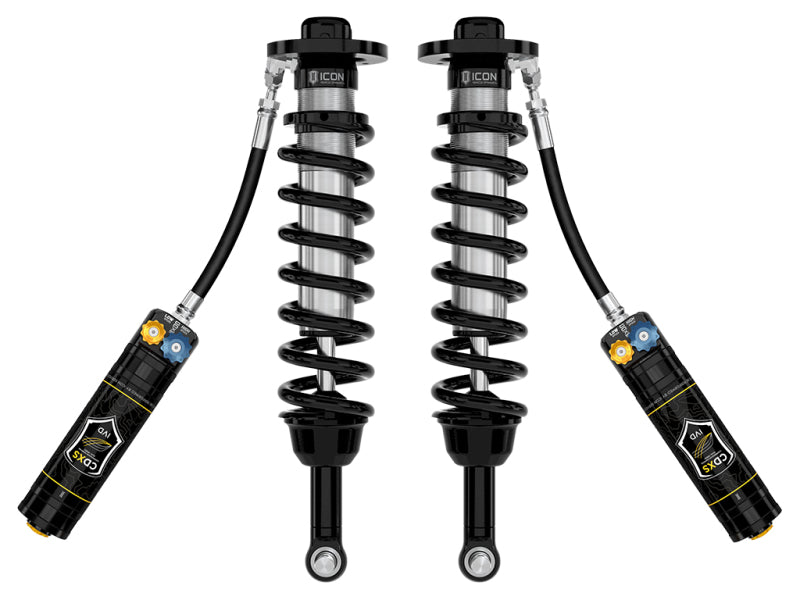

ICON 22-25 Toyota Tundra 2.5 Series VS RR CDXS Coilover Kit - 58770X

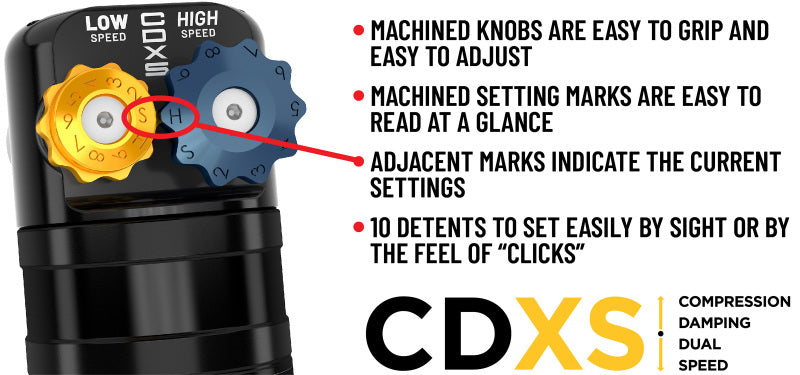

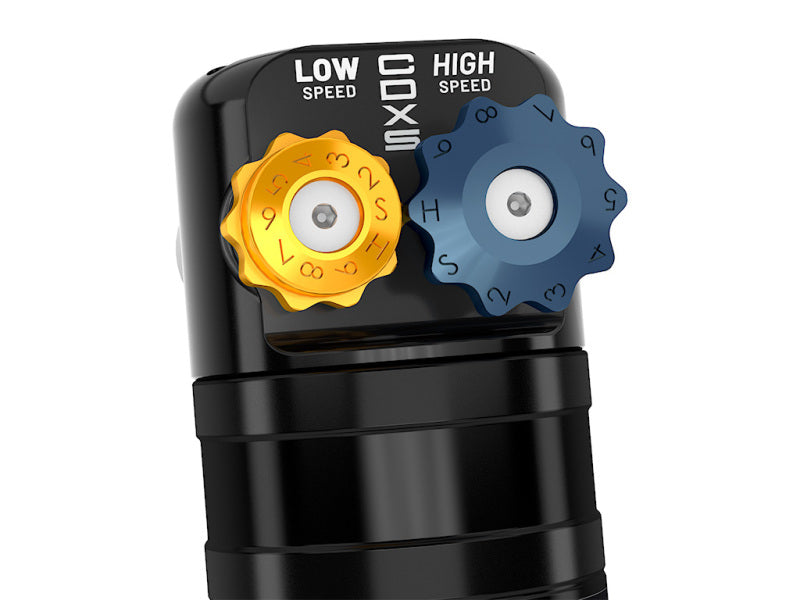

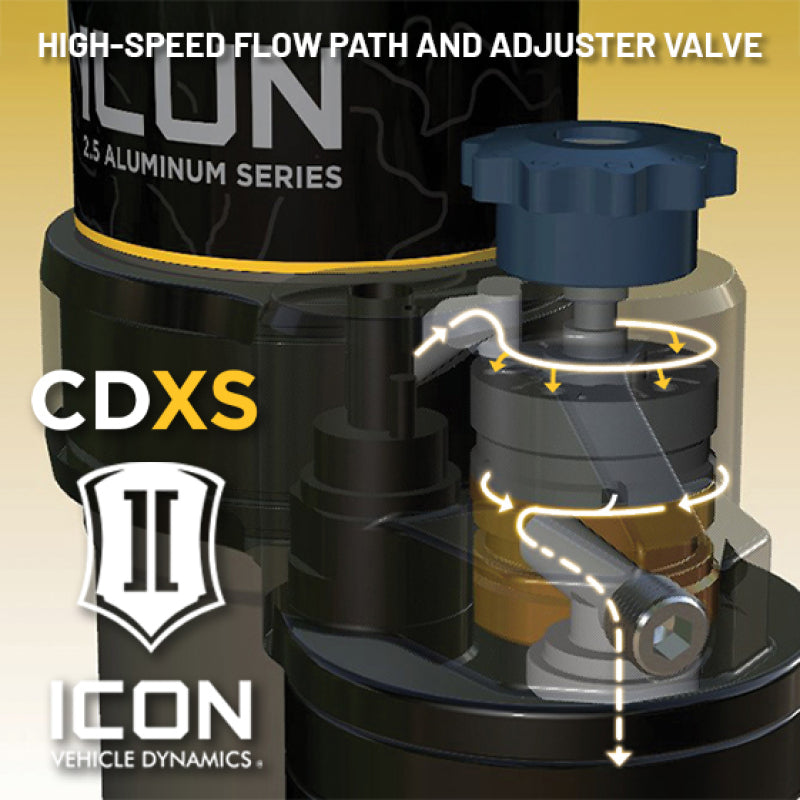

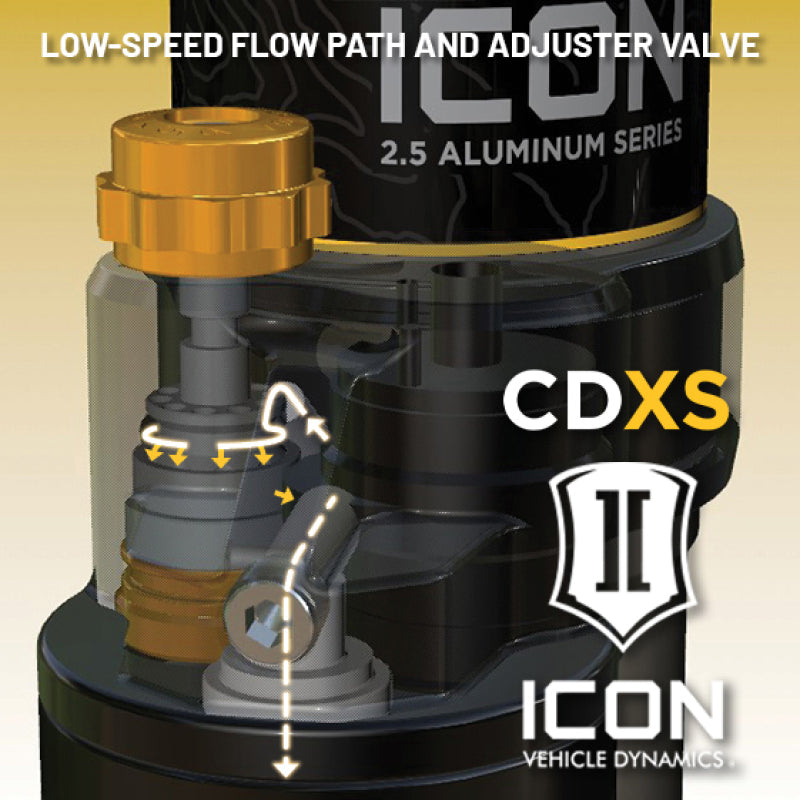

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.

APPLICATION NOTE #148: ICON does not recommend lifting above 2.25" (Tundra)/3.75" (Sequoia) without an ICON upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4WD models

APPLICATION NOTE #188: Not compatible with OE TRD billet front upper control arms regardless of lift height. Vehicles equipped with these will require ICON Delta Joint Pro UCAs (part number 58461DJ or 58561DJ) for fitment.

APPLICATION NOTE #404: Most Sequoia sub-models will have front lift height range of 3-4.5" over stock. Submodels equipped with TRD Off-Road Package or TRD Pro will have front lift height range of 1-2.5" over stock.

APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

APPLICATION NOTE #401: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock

APPLICATION NOTE #402: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock

APPLICATION NOTE #420: Not compatible with TRD billet aluminum front upper control arms. ICON Delta Joint Pro UCAs are required if equipped.

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equippedvehicle.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

APPLICATION NOTE #146: Tundra SR5 equipped with TRD Sport package lift range will be 2.25-4.5"

APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required

APPLICATION NOTE #403: Tundra TRD Pro will have front lift height range of 0-1.5" over stock

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 6.00” Backspace / 25mm Offset

OEM Wheels & Tires Fitment: Yes

Features & Benefits

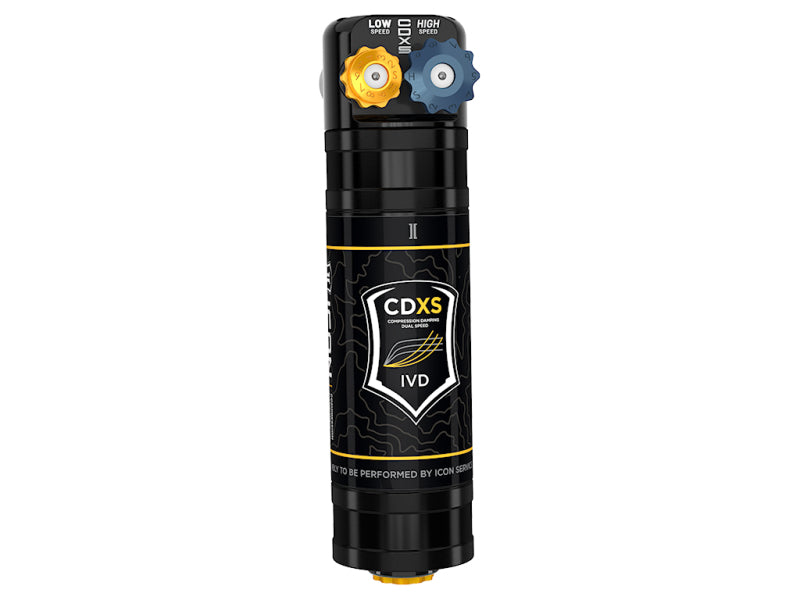

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Downloads & Resources

• Installation Instructions (PDF)
