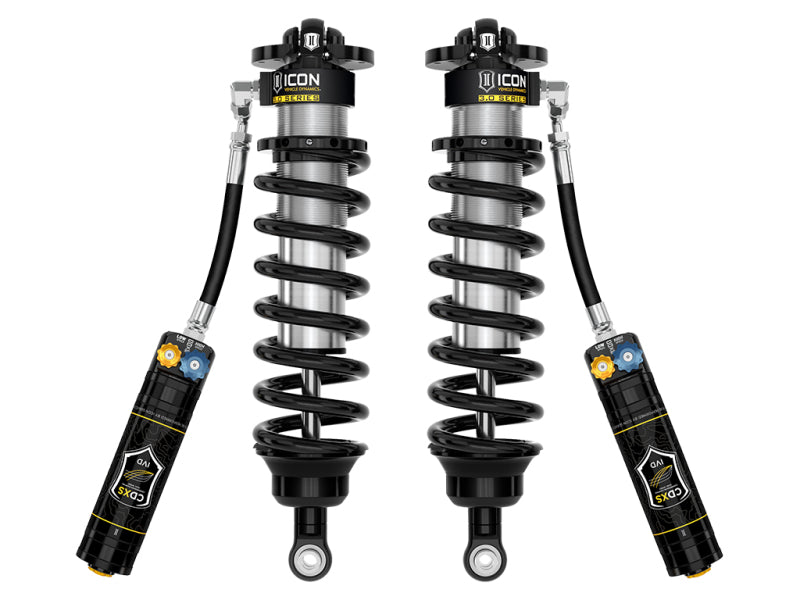

ICON 22-25 Toyota Tundra 3.0 Series VS RR CDXS Coilover Kit - 58775X

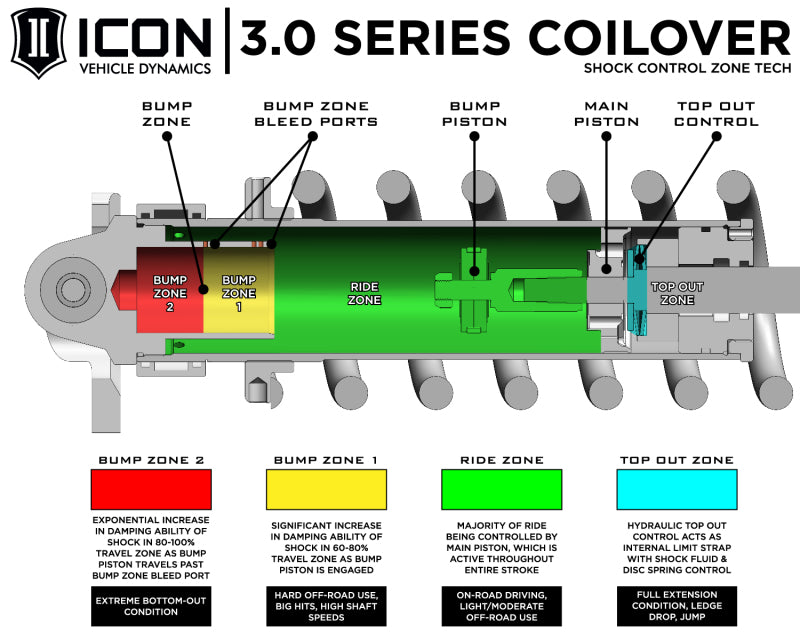

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.

APPLICATION NOTE #413: Most Sequoia submodels will have front lift height range of 3-4.5" over stock. Submodels equipped with TRD Off-Road Package or TRD Pro will have front lift height range of 1-2.5" over stock.

APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.

APPLICATION NOTE #410: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock

APPLICATION NOTE #409: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock

APPLICATION NOTE #411: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock

APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required

APPLICATION NOTE #412: Tundra TRD Pro will have front lift height range of 0-1.25" over stock

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 6.00” Backspace / 25mm Offset

APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required

OEM Wheels & Tires Fitment: Yes

Features & Benefits

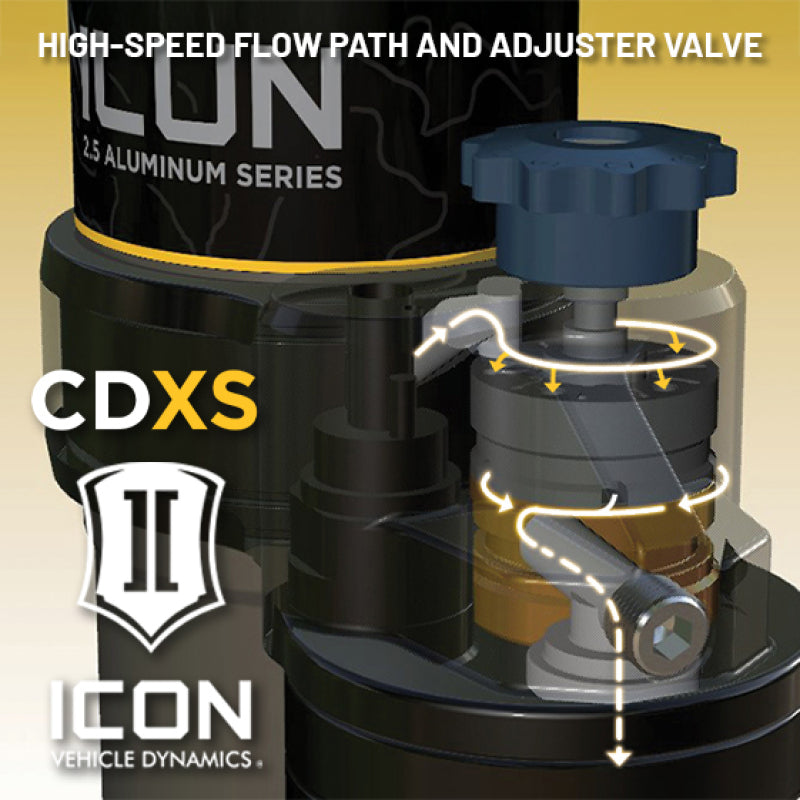

• ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

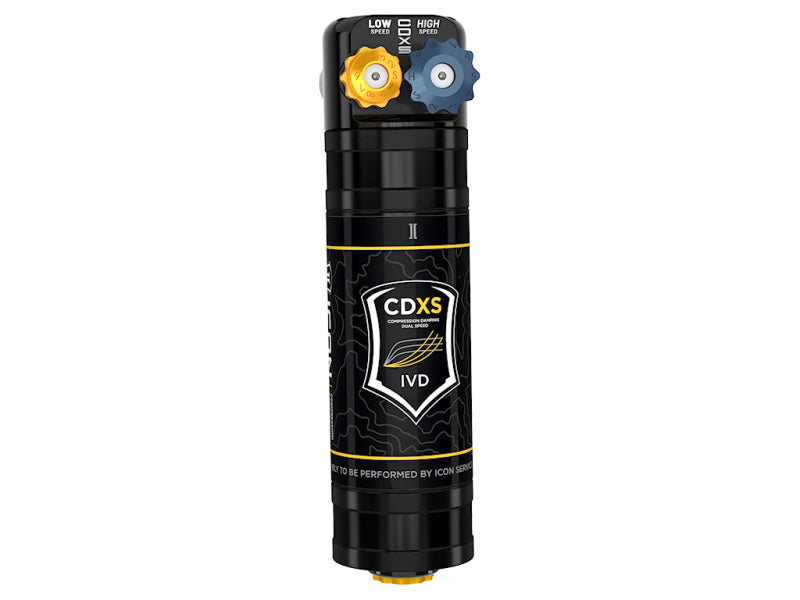

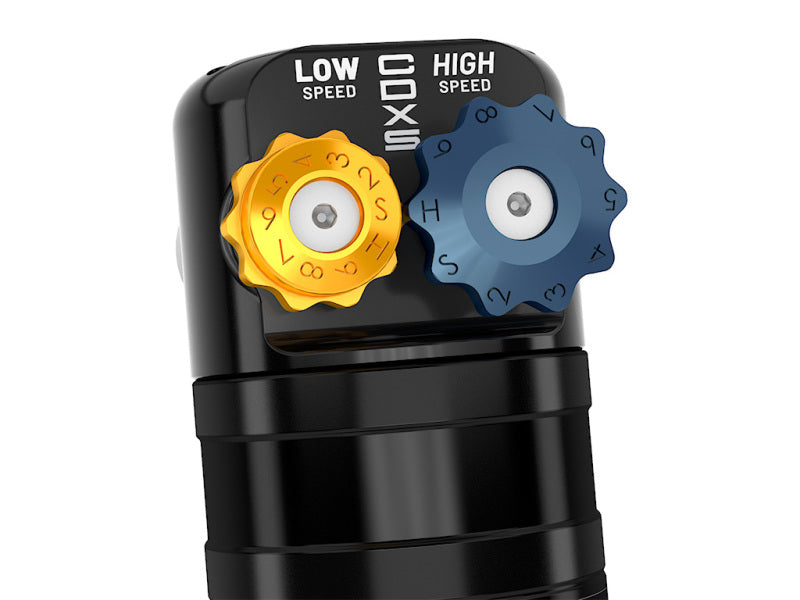

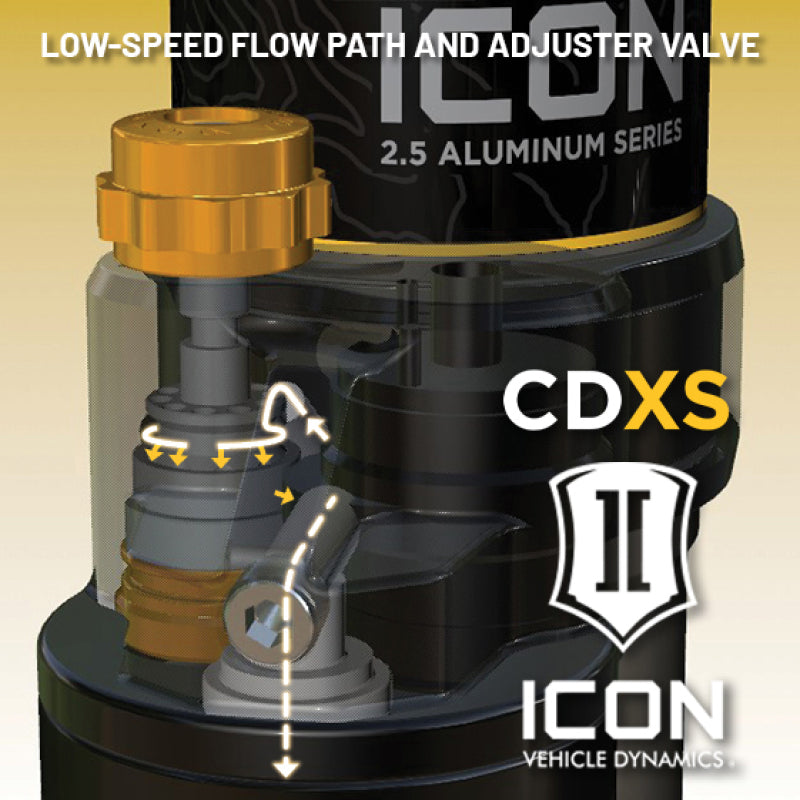

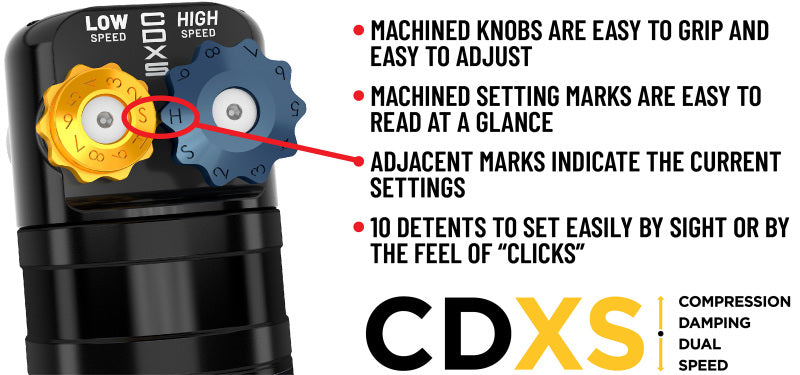

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• CNC machined 6061 aluminum components with a black anodized finish
• 7/8” diameter induction hardened, chrome plated shock shafts
• 40% increase in front wheel travel over stock
• Fully Rebuildable and Re-tunable

Downloads & Resources

• Installation Instructions (PDF)
