ICON 23-24 Toyota Sequoia TRD PRO 2.5in Stage 10 Suspension System - Billet - K53400

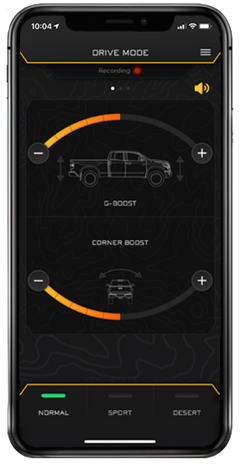

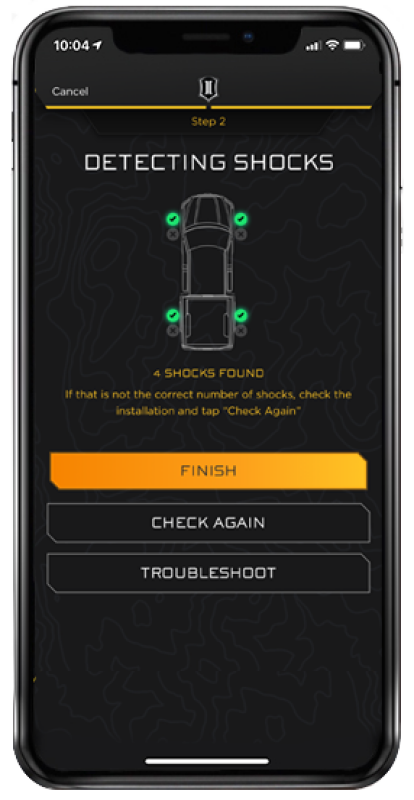

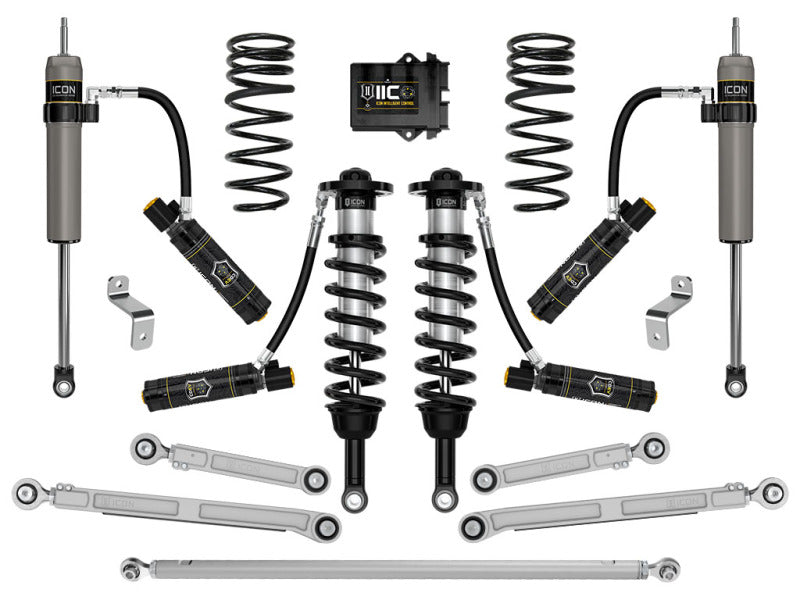

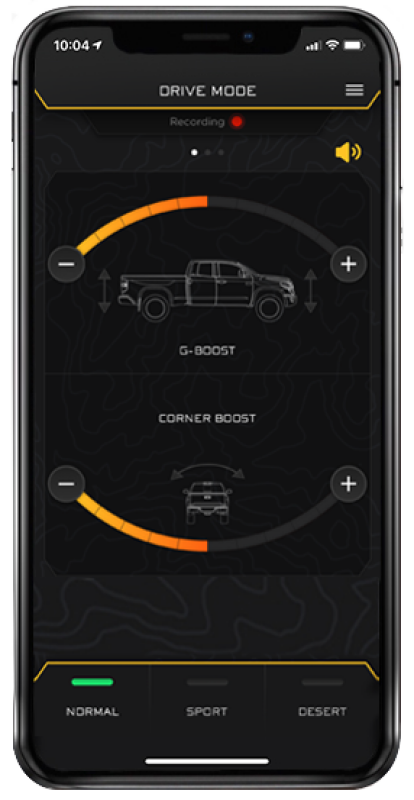

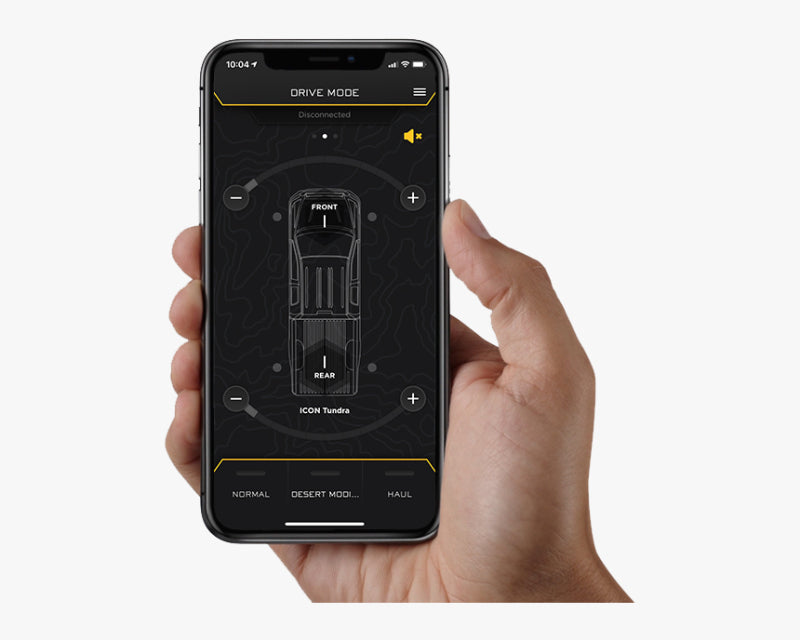

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2023-2026 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features 2.5 Series remote reservoir coilover shocks with CDEV for the front of the truck along with dual rate coil springs, billet rear upper and lower links, adjusable rear track bar, and our proven 2.5 Aluminum Series shocks with remote reservoirs and CDEV for the rear. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.

APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset

OEM Wheels & Tires Fitment: Yes

Features & Benefits

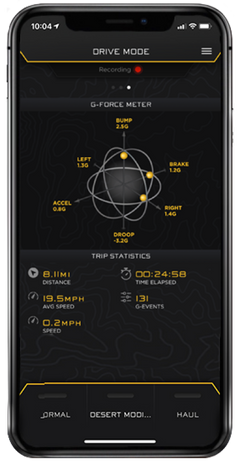

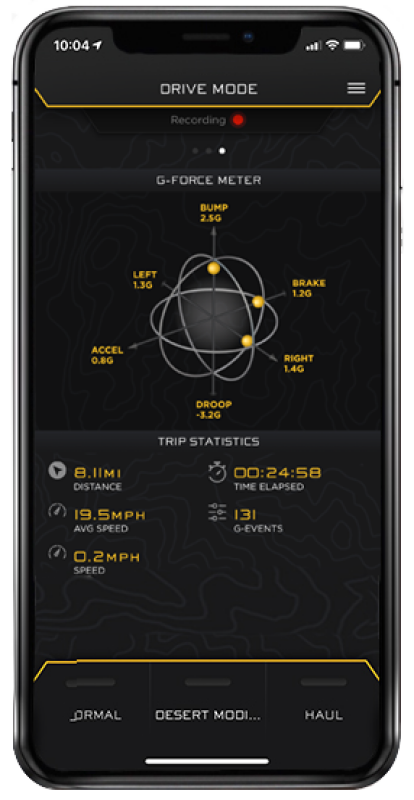

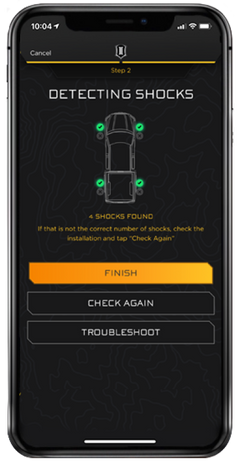

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
• Allows for increased wheel travel without overstressing OE components
• Adjustable front ride heights from 1-2.5” of front lift over stock
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2023-2026 Toyota Sequoia TRD Pro
