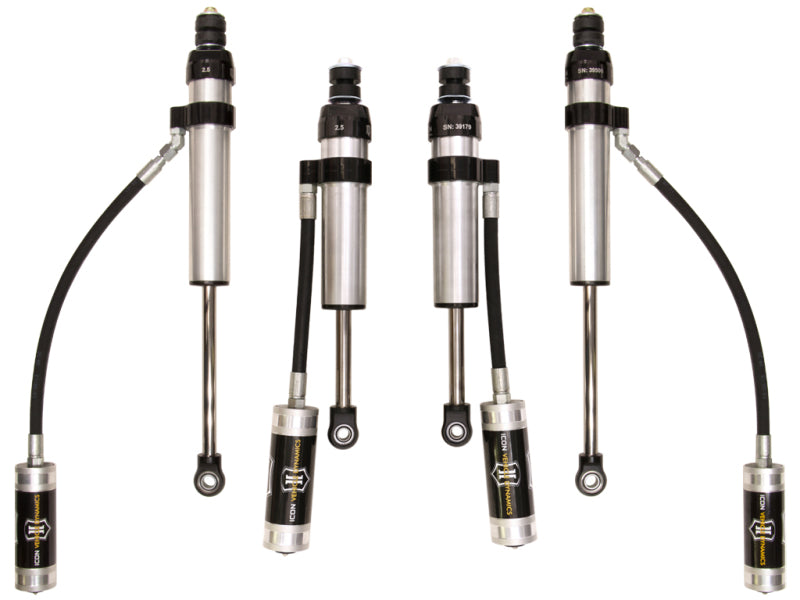

ICON 98-07 Toyota Land Cruiser 100 Series/Lexus LX470 0-3in Stage 2 Suspension System - K53082
- Catalog SKU
- icoK53082
- Manufacturer part #
- K53082
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
APPLICATION NOTE #71: Any kit with part# 57802P/CP in it with stock rear coil springs vehicle will ride in bump zone of shock. Stock or some aftermarket coil springs may come unseated at full droop.
APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
APPLICATION NOTE #73: Aftermarket control arm required for clearance
APPLICATION NOTE #97: Not compatible with AHC equipped models
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control
- Remote reservoirs provided for extended shock damping performance
- FK rod end bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components
- No cutting or welding necessary for install
