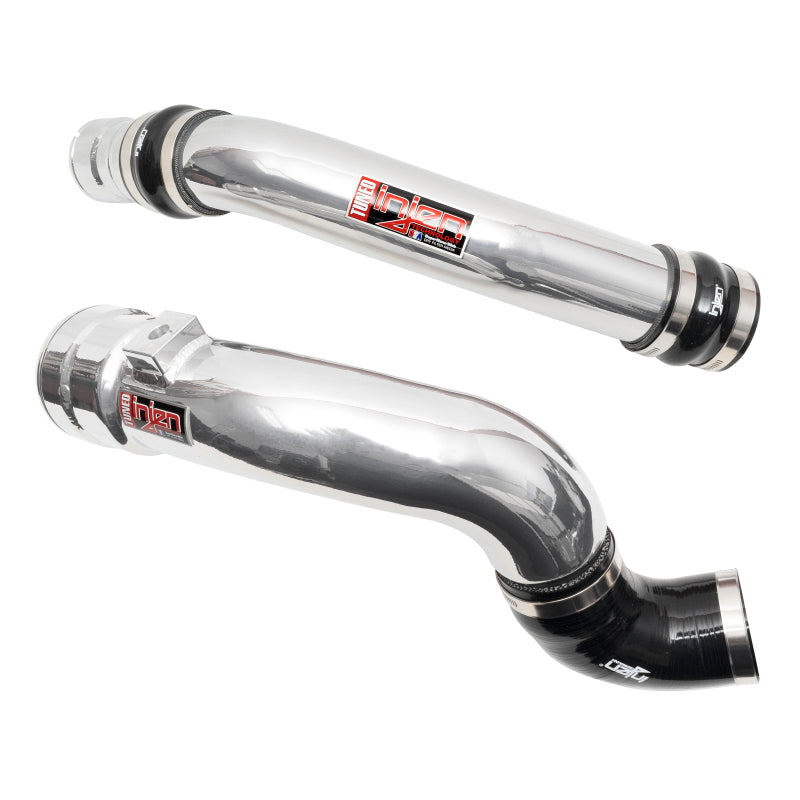

Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Polished Intercooler Piping Kit - SES9004ICP
- Catalog SKU
- injSES9004ICP
- Manufacturer part #
- SES9004ICP
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
This upgraded charge pipe system is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. The Injen hot-side pipe has an ID of 3.00in and the cold side has an ID of 3.25in. By utilizing oversized piping on both the hot side and the cold side, these charge pipes are able to reduce restriction, balance the airflow in and out of the intercooler to improve performance, and lower engine damaging exhaust gas temperatures (EGTs).
Intercooler not included
Features & Benefits
- Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

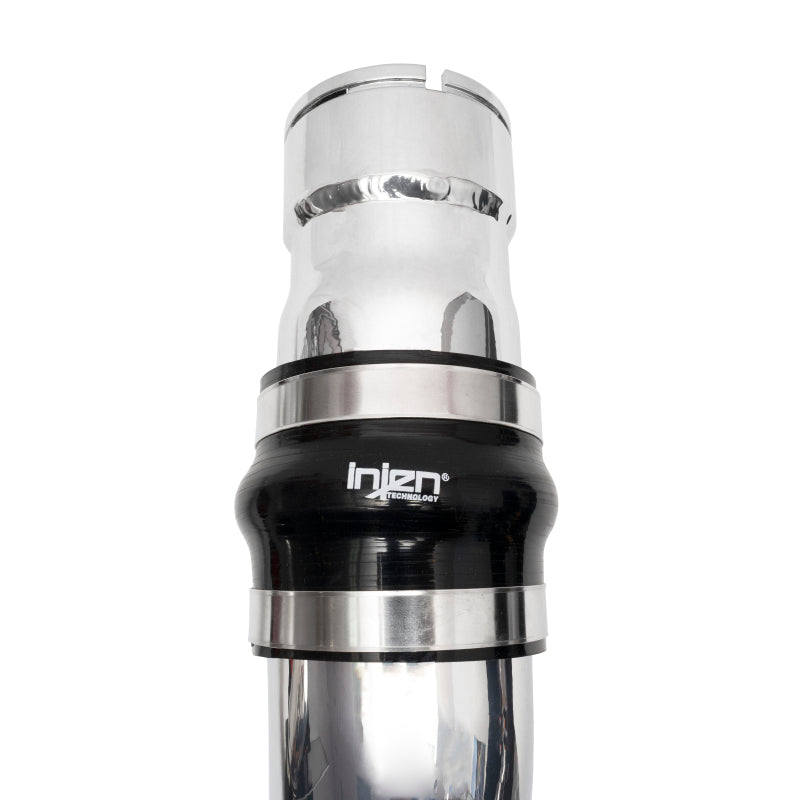

- Precision CNC machined factory-style quick connections utilizing the OE spring clip
- Includes all necessary hardware for a hassle-free installation
- Beaded Tube Ends to Help Prevent Couplers from Coming Off

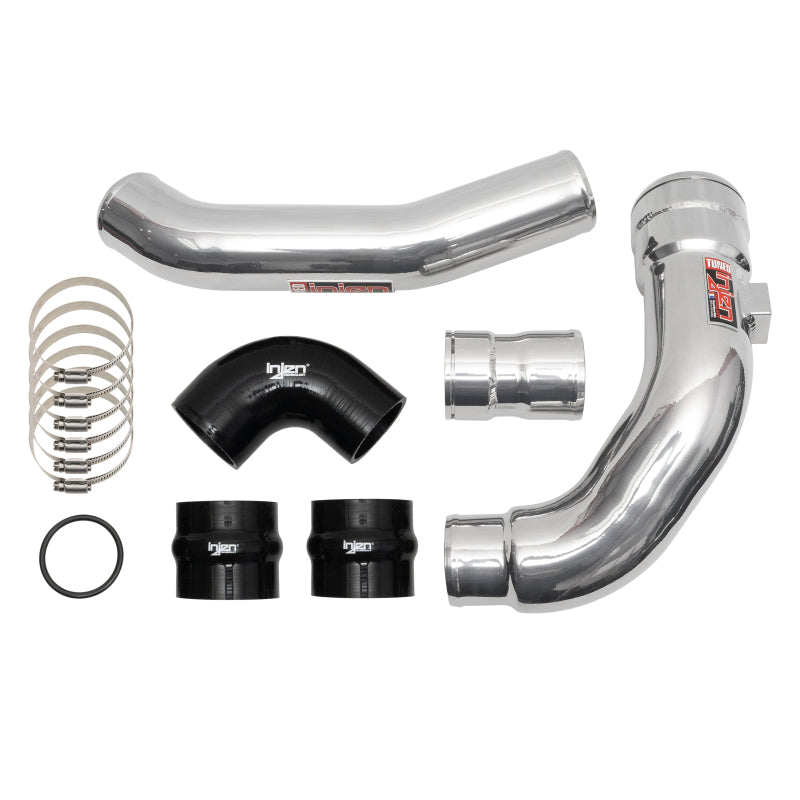

- Complete system including both HOT and COLD side piping
- Stainless Steel Band Clamps with Inner Protective Liner
- Pairs perfectly with Injen's EVO9004 cold air intake
- Cold side pipe is 2-pieces for easier installation
- Increase Throttle Response and Decreases Turbo Lag
- Automotive Grade Reinforced Silicone Couplers
- Manufactured from Mandrel-Bent 6061 Aluminum

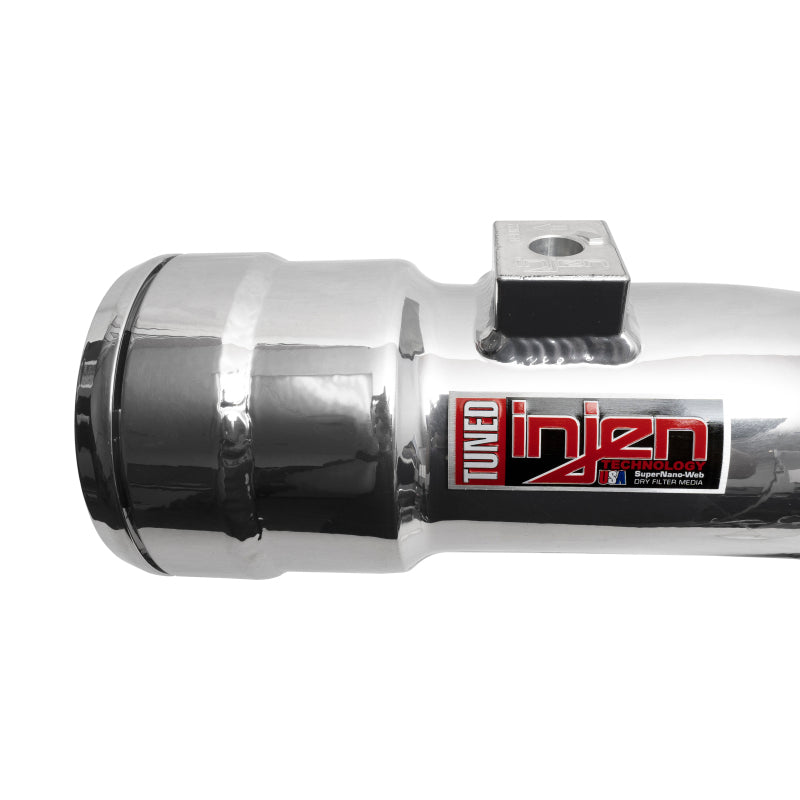

- Unique Injen Logo Plate for a Refined Style
- Injen Technology Limited Lifetime Warranty
- Cold Side Pipe Inside Diameter - 3.250in
- Works seamlessly with the OE intercooler
- Hot Side Pipe Inside Diameter - 3.00in
- Uses all factory mounting locations
- Made in Pomona California, USA
- Wrinkle Black ? SES9004ICPWB
- Available in three finishes
- Wrinkle Red ? SES9004ICPWR
- Polished - SES9004ICP
