SPC Performance 4X4 Camber/Caster Sleeve SET - 23100

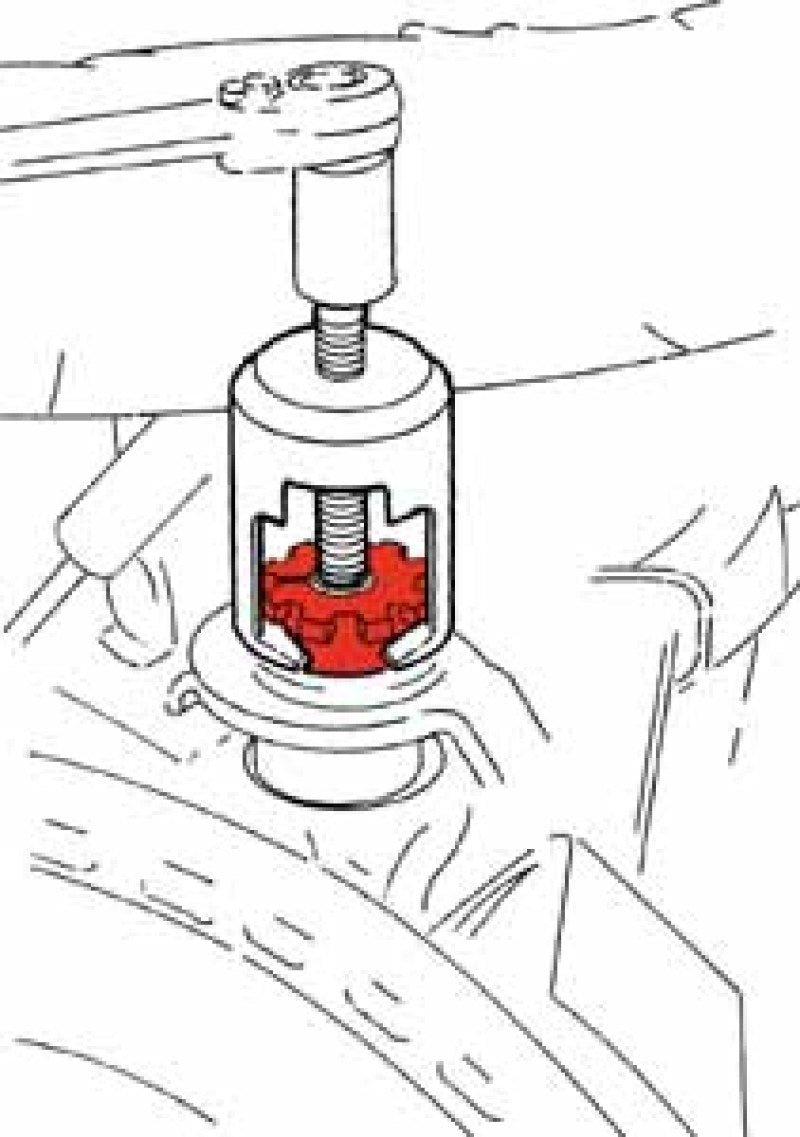

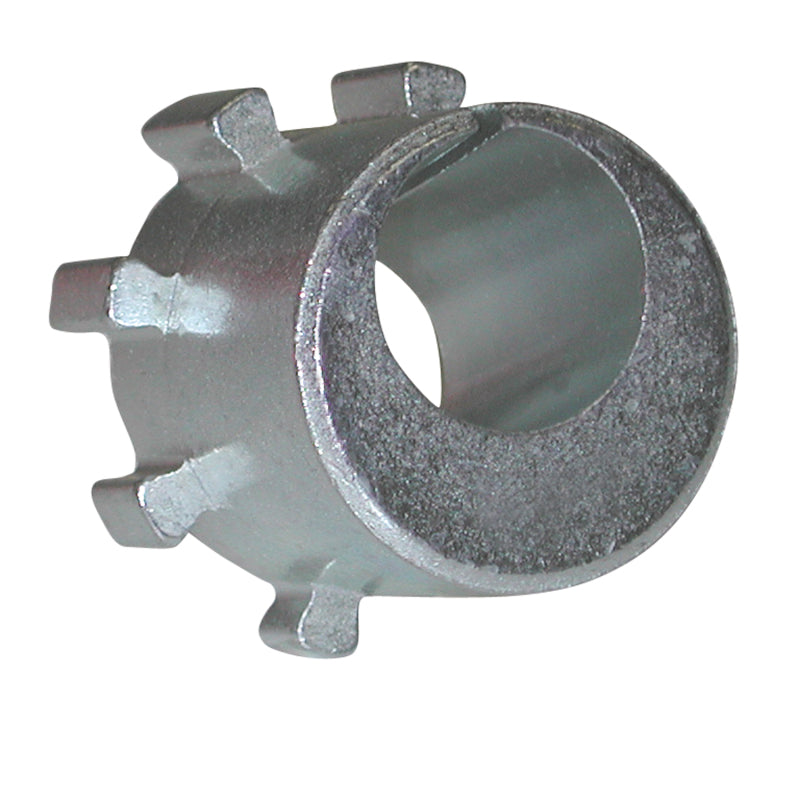

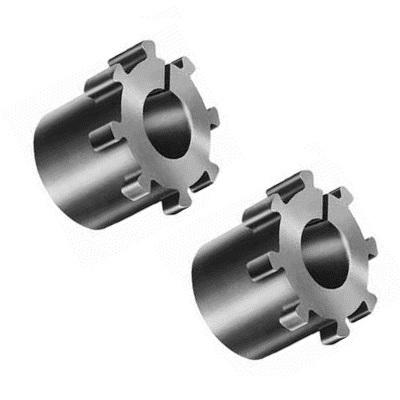

Change camber,caster, or both on twin traction beam Dana 44s with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Unstall zero degree sleeve 23109 to determine the change needed, then install the correct sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Set 23100 contaings 1 each: 23101, 23102, 23103, 23104, 23105, 23106, 23107, 23108, 23109 California Residents WARNING

Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.

Features & Benefits

• Front Adjustment Range: Camber/Caster ±0.25° to ±2.75°with additional series sleeves
• Easily change caster / camber or both at the same time
• Clear Zinc coating for corrosion resistance

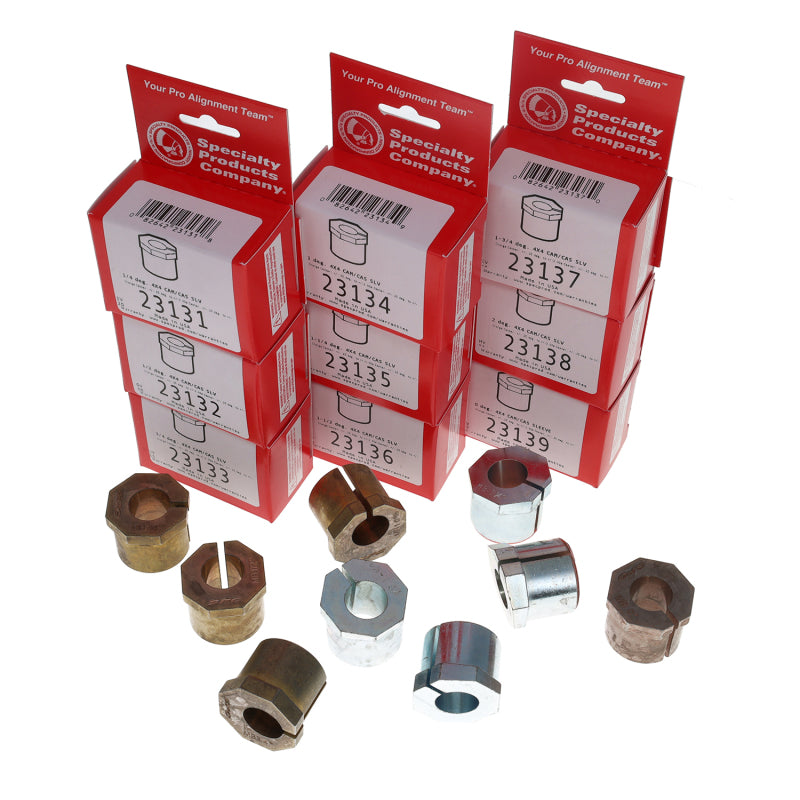

• Kit includes an assortment of (9) sleeves
• Recommended Tools: 77880 - Sleeve Puller
• Required: 1 per wheel
• 23108: 2.00˚
• 23107: 1.75˚
• 23101: 0.25˚
• 23106: 1.50˚
• 23105: 1.25˚
• 23104: 1.00˚
• 23103: 0.75˚
• 23102: 0.50˚
• 23109: 0.00°

Downloads & Resources

• Photo - Primary
• Link To Manufacturer Page
• Installation Instructions (PDF)
• 360 Degree Image Set (ZIP)
• Link To Manufacturer Page
