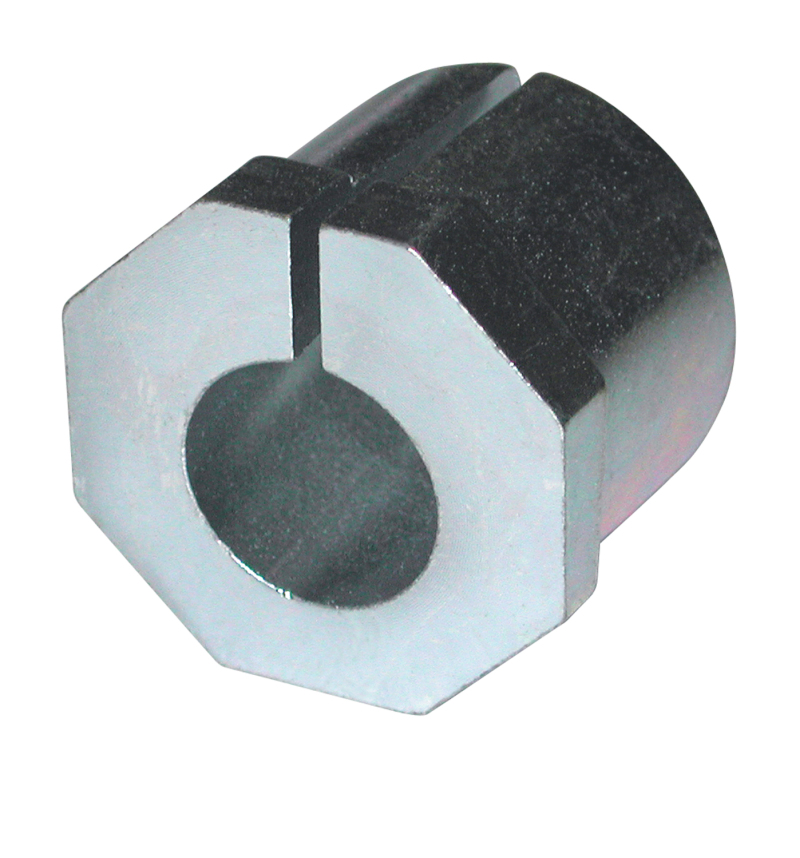

SPC Performance SET (9) 4X4 SLEEVES - 23130

Brand: SPC Performance

SKU: spc23130

availability: In stock

$146.96

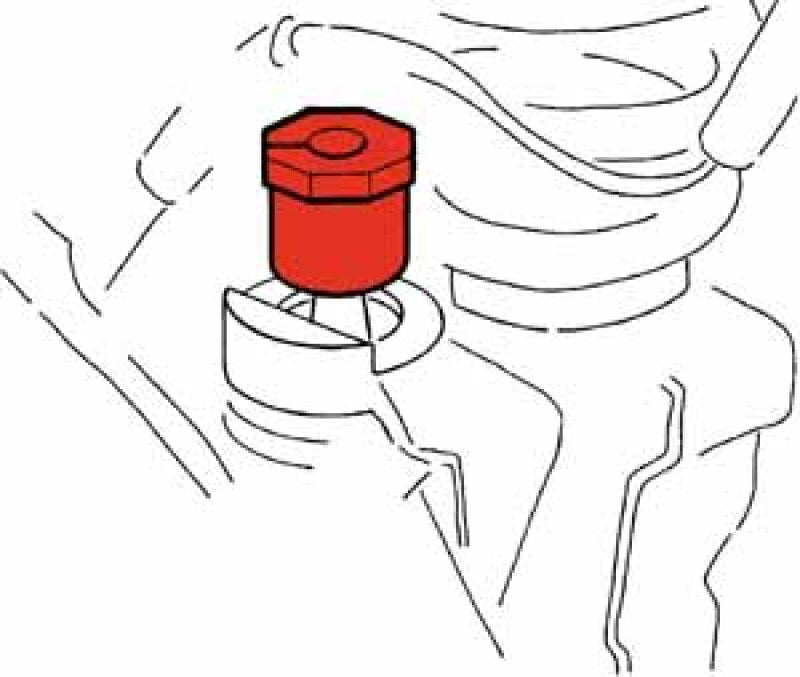

Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45deg. Set 23130 contains 1 each: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139 California Residents WARNING Product appearance and features may vary in the market as design changes, improvements and modifications are implemented. Features & Benefits Front Adjustment Range: Camber/Caster ±0.25° to ±2.00° Easily change caster / camber or both at the same time Clear Zinc coating for corrosion resistance Kit includes an assortment of (9) sleeves Recommended Tools: 77880 - Sleeve Puller Sleeve Kit for popular 4x4 applications Required: 1 per wheel 23138: 2.00˚ 23131: 0.25˚ 23137: 1.75˚ 23136: 1.50˚ 23135: 1.25˚ 23134: 1.00˚ 23133: 0.75˚ 23132: 0.50˚ 23139: 0.00° Downloads & Resources Photo - Primary Link To Manufacturer Page Installation Instructions (PDF) 360 Degree Image Set (ZIP) Link To Manufacturer Page

Quantity

Quantity must be 1 or more

Product Info

Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45deg. Set 23130 contains 1 each: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139 California Residents WARNING

Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.

Features & Benefits

Front Adjustment Range: Camber/Caster ±0.25° to ±2.00°
Easily change caster / camber or both at the same time
Clear Zinc coating for corrosion resistance

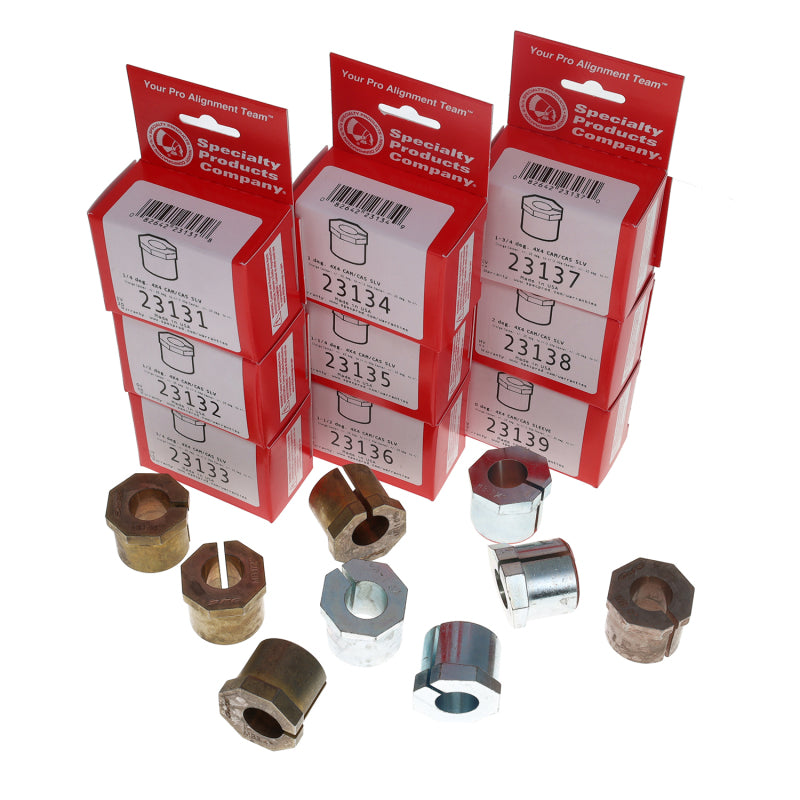

Kit includes an assortment of (9) sleeves
Recommended Tools: 77880 - Sleeve Puller
Sleeve Kit for popular 4x4 applications
Required: 1 per wheel
23138: 2.00˚
23131: 0.25˚
23137: 1.75˚
23136: 1.50˚
23135: 1.25˚
23134: 1.00˚
23133: 0.75˚
23132: 0.50˚
23139: 0.00°
