ICON 19-23 Gm 1500 2.38-3.75in Stage 2 Exp Suspension System w/ Tubular Uca - K73072T

The ICON Vehicle Dynamics Stage 2 EXP complete suspension system for the 2019-2026 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

APPLICATION NOTE #350: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 2.375-3.75” over stock (lift heights vary slightly depending on trim/engine)

APPLICATION NOTE #346: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1.75-3" over stock

APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022

Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)

Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)

APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #347: Not compatible with Silverado 1500 Trail Boss or Sierra 1500 AT4 submodels

APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset

APPLICATION NOTE #16: May require slight sanding of rear shock absorber mounts

APPLICATION NOTE #110: Trimming Required For Recommended Tire Size.

Features & Benefits

• Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish

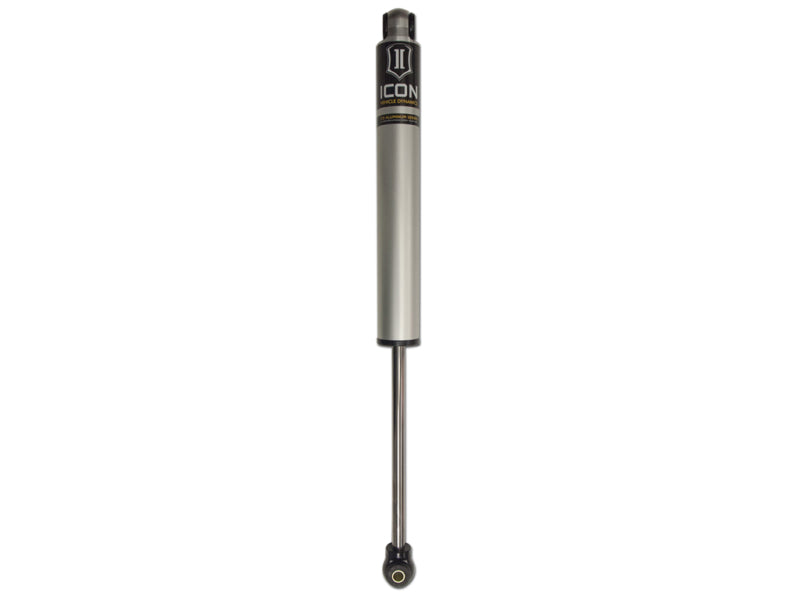

• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance

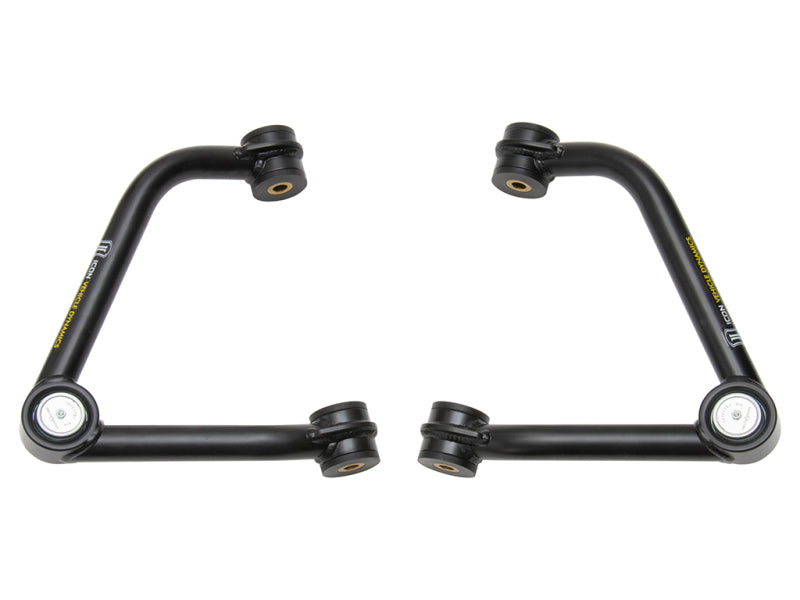

• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• 7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design

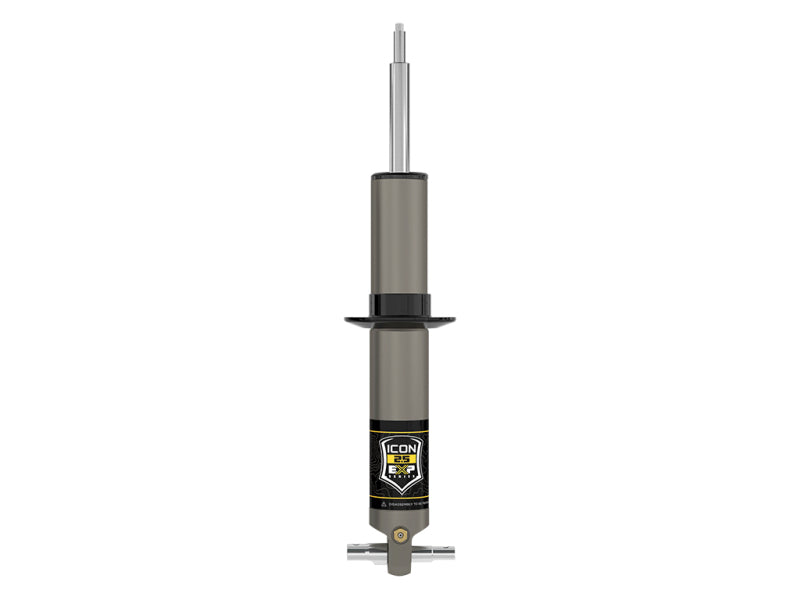

• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• CNC machined 6061 aluminum components with a black anodized finish
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2019-2026 GM 1500 pickups
