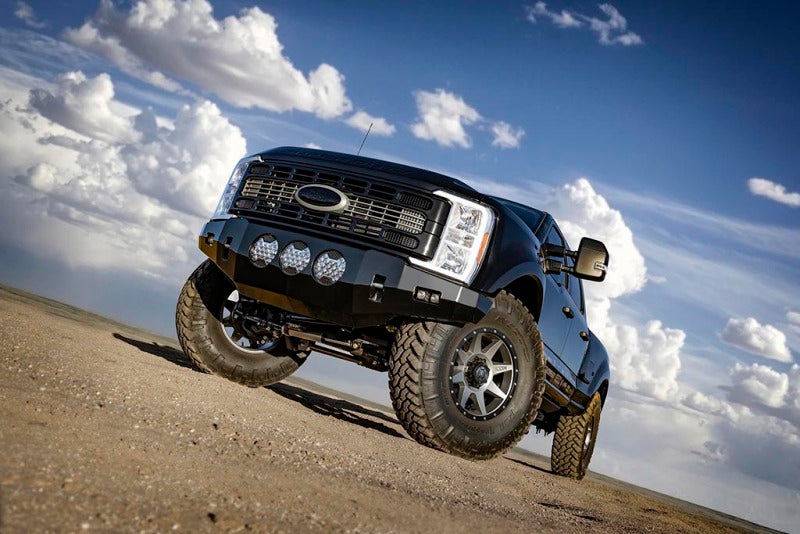

ICON 2023 Ford F250/F350 (Dsl) 4.5in Stage 8 Suspension System w/ Expansion Packs - K64548L

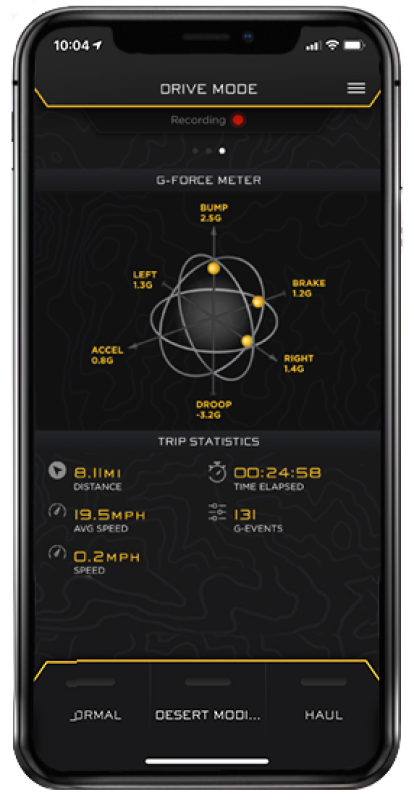

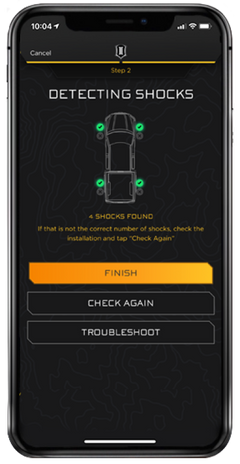

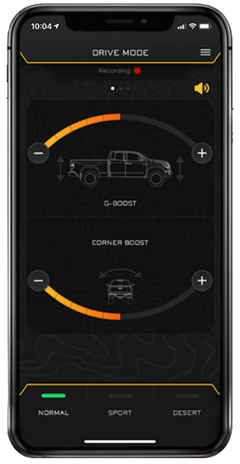

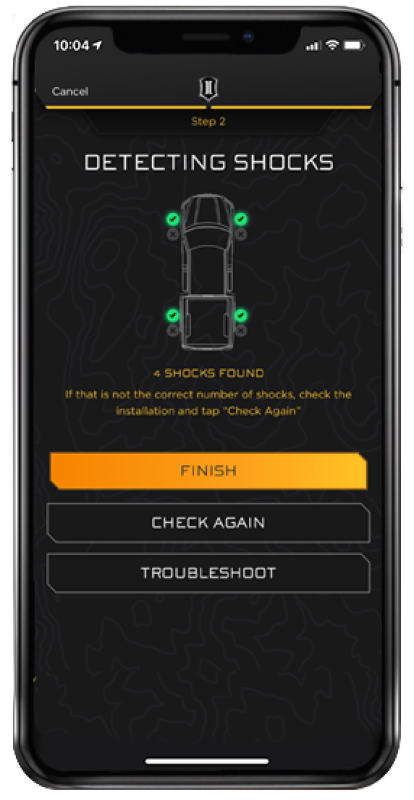

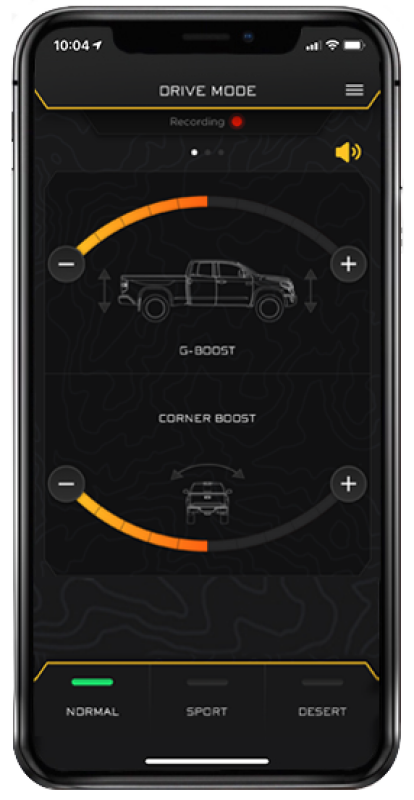

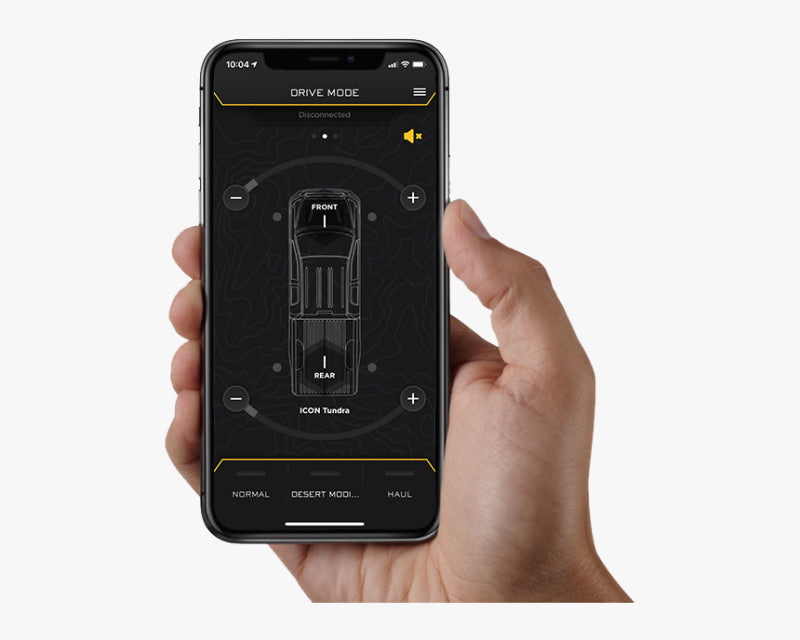

ICON’s Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series remote reservoir CDEV front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #166: If equipped with Dynamic Bending Headlamps and/or Onboard Scales part # 611081 is also required

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #521: Trucks equipped with Tremor package with have front lift height of 3.5" over stock

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

APPLICATION NOTE #209: Reduction in rear spring rate may reduce accuracy of Onboard Scales, if equipped

APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models

APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel

APPLICATION NOTE #6: Springs are rated for diesel engines only

APPLICATION NOTE #151: Fits single rear wheel models only

APPLICATION NOTE #1: Only fits 4WD models

OEM Wheels & Tires Fitment: Yes

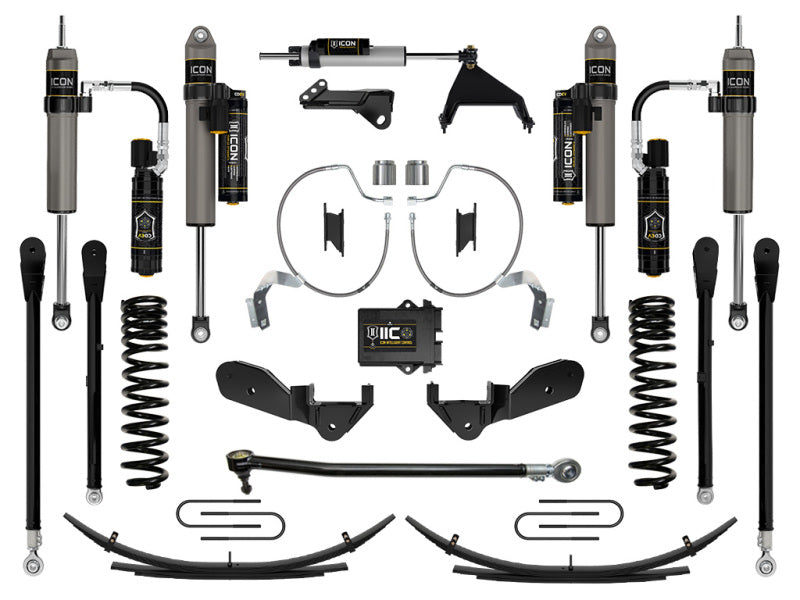

Features & Benefits

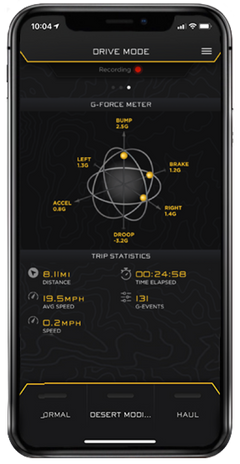

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• ICON 2.5 Aluminum Series remote reservoir shocks feature vehicle specific tune for superior performance and ride quality
• ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
• Remote reservoirs maintain cooler operating temperatures and consistent performance during extended off-road use
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• 2.5 Aluminum Series shocks feature corrosion resistant hard anodized shock bodies with 7/8" shafts
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Leaf spring expansion packs improve ride quality and provide 2" of rear lift
• Approximately 50% increased front wheel travel over stock
• Lifetime guarantee against spring breakage or sagging
• Fits 2023-2026 F-250 / F-350 4WD diesel applications
• Shocks are fully rebuildable and re-tunable
• Stainless steel braided front brake lines
