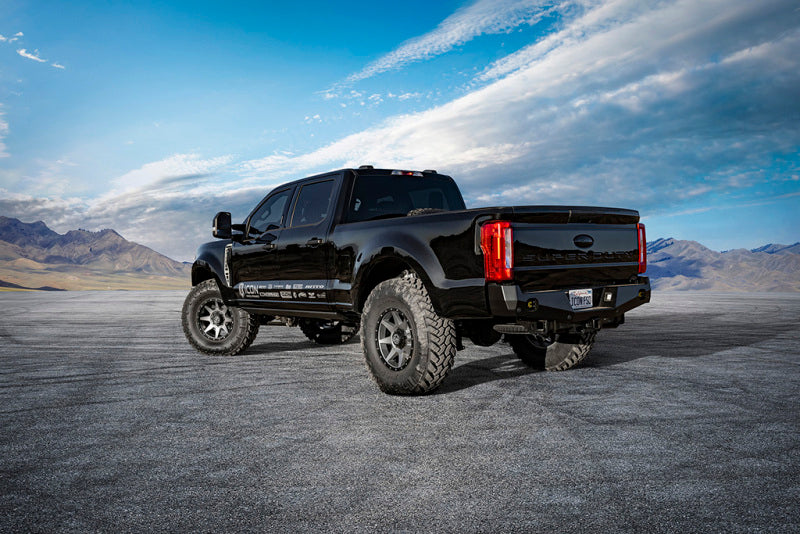

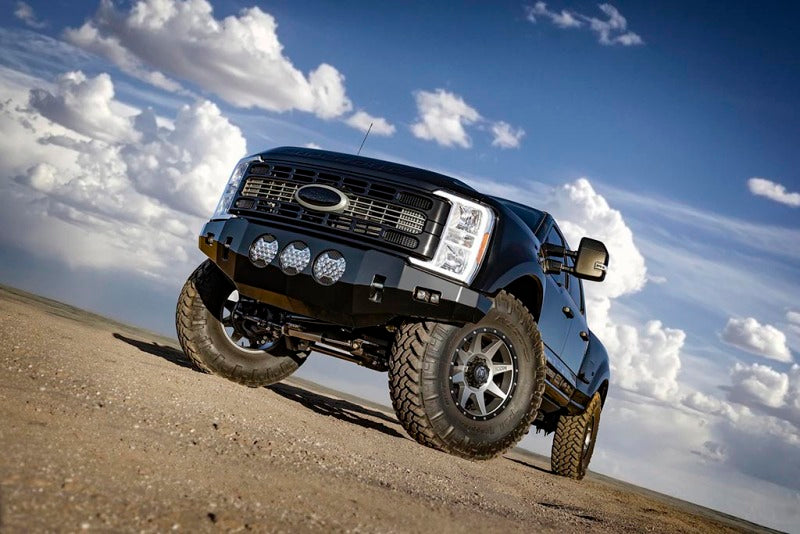

ICON 2023 Ford F250/F350 (Gas) 4.5in Stage 6 Suspension System - K64536

ICON's 4.5" Stage 6 System is comprised of 4.5” lift coil springs optimized for trucks equipped with gasoline engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #521: Trucks equipped with Tremor package with have front lift height of 3.5" over stock

APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models

APPLICATION NOTE #156: Springs are rated for gasoline engines

APPLICATION NOTE #157: Lift heights based on 4WD crew cab gas

APPLICATION NOTE #151: Fits single rear wheel models only

APPLICATION NOTE #1: Only fits 4WD models

OEM Wheels & Tires Fitment: Yes

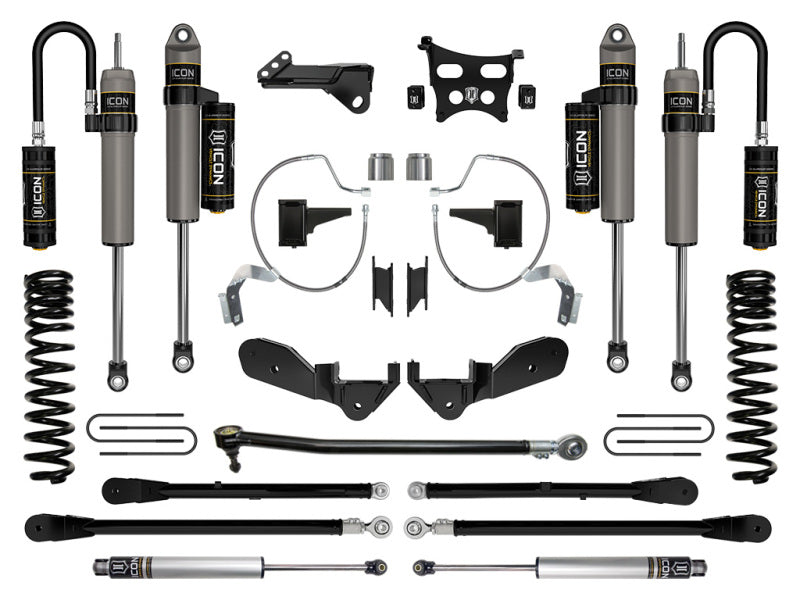

Features & Benefits

• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• ICON 2.5 Aluminum Series remote reservoir shocks feature vehicle specific tune for superior performance and ride quality
• ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
• Remote reservoirs maintain cooler operating temperatures and consistent performance during extended off-road use
• 2.0 Aluminum Series steering stabilizers feature corrosion resistant anodized shock bodies with 5/8" shafts
• 2.5 Aluminum Series shocks feature corrosion resistant hard anodized shock bodies with 7/8" shafts
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Dual steering stabilizer kit offers increased steering damping
• Lifetime guarantee against coil spring breakage or sagging
• Approximately 50% increased front wheel travel over stock
• Fits 2023-2026 F-250 / F-350 4WD gasoline applications
• Shocks are fully rebuildable and re-tunable
• Stainless steel braided front brake lines
• Heavy-duty fabricated rear lift blocks

Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
