ICON 05-07 Ford F250/F350 4.5in Stage 4 Suspension System - K64503
- Catalog SKU
- icoK64503
- Manufacturer part #
- K64503
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
This 4.5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The Dual-Rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment. The Stage 4 system also includes our 4-Link kit for the ultimate in shock technology and suspension technology.
APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
- 100% bolt-on system - no drilling,cutting or welding necessary for install
- Clears 35" Tall Tires & 37" Tall Tires w/ Minor Trimming
- 4.5" more travel from ride height to front bump stops
- Lifetime guarantee that coil springs won’t sag
- State-of-the-art dual-rate coil spring
- No drive shaft modifications needed
- Less body roll than stock truck
- 50% increase in wheel travel
- No change in towing capacity

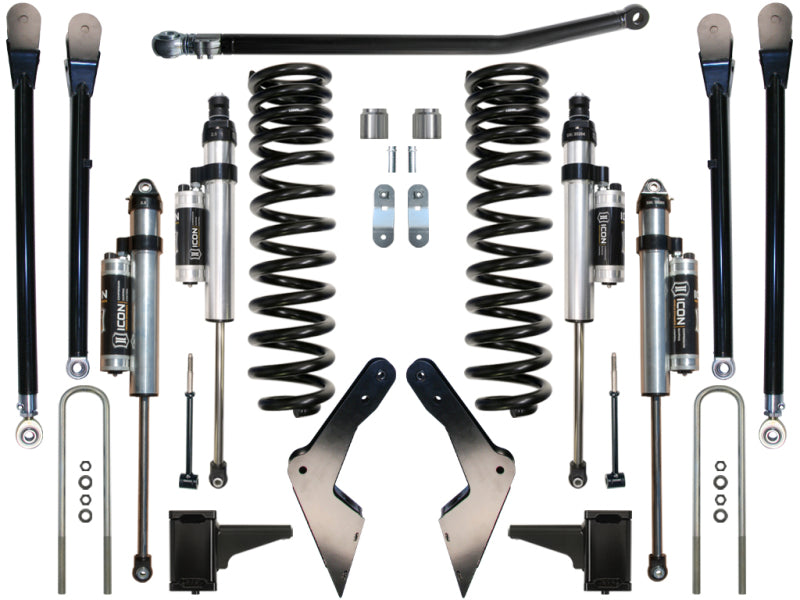

What's Included
| Qty | Part | Part # |
|---|---|---|
| 1 | ICON 1999+ Ford F-250/F-350 5in Block Kit | 195275 |
| 1 | ICON 99-10 Ford F-250/F-350 Rear 17in U-Bolt Kit | 37002 |
| 1 | ICON 1999+ Ford F-250/F-350 Super Duty 3-6in Rear 2.5 Series Shocks VS PB CDCV - Pair | 37701CP |
| 1 | ICON 05-07 Ford F-250/F-350 Front 4.5in Box Kit | 64000 |
| 1 | ICON 2005+ Ford F-250/F-350 Front 4.5in Dual Rate Spring Kit | 64010 |
| 1 | ICON 05-16 Ford F-250/F-350 Adj Track Bar w/FK Rod End | 64035 |
| 1 | ICON 2005+ Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS PB CDCV - Pair | 67710CP |
| 1 | ICON 2005+ Ford Super Duty Rear Fixed Front Upper Links | 164501 |
| 1 | ICON 05-10 Ford Super Duty 4 Link Frame Bracket Kit | 164500 |
| 1 | ICON 2005+ Ford Super Duty Front Lower Adjustable Link Kit | 164502 |
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
