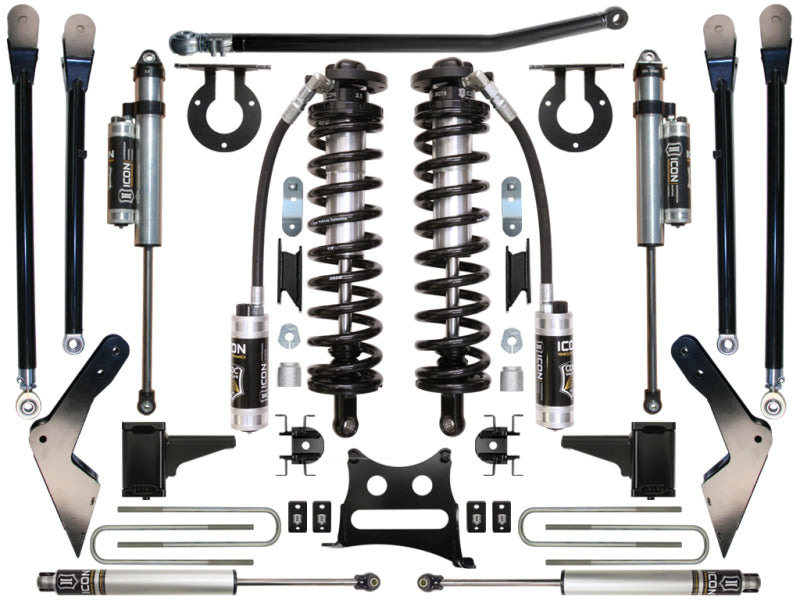

ICON 08-10 Ford F250/F350 4-5.5in Stage 5 Coilover Conversion System - K63125
- Catalog SKU
- icoK63125
- Manufacturer part #
- K63125
- ✓Secure checkout
- ✓Enthusiast support
- ✓Free shipping on eligible $300+ merchandise subtotals in the lower 48 states
- Returns policy
Some products and vendors are excluded, including freight/LTL and oversized items.
One Parts Desk request covers fitment, availability, and timing.
Price matches are reviewed before purchase and are not guaranteed.
Project Garage
Plan this exact partSave the selected option to a build plan in this browser. No account required.
Fitment is not verified for your saved vehicle.
Product details
Product information
Overview
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Features & Benefits
- Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Eibach coil springs guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- Decreased body roll and improved on and off-road ride dynamics
- Coilover conversion allows for addition of secondary shock
- Increased wheel travel and ride quality over stock
- Bolt-in system fits in OE coil bucket location
- Shocks are fully rebuildable and revalveable
- Ride height adjustable coilovers (4-5.5")
What's Included
| Qty | Part | Part # |
|---|---|---|
| 1 | ICON 1999+ Ford F-250/F-350 5in Block Kit | 195275 |
| 1 | ICON 99-10 Ford F-250/F-350 Rear 17in U-Bolt Kit | 37002 |
| 1 | ICON 1999+ Ford F-250/F-350 Super Duty 3-6in Rear 2.5 Series Shocks VS PB CDCV - Pair | 37701CP |
| 1 | ICON 05-16 Ford F-250/F-350 Adj Track Bar w/FK Rod End | 64035 |
| 1 | ICON 2008+ Ford F-250/F-350 Front 4.5in Box Kit | 64050 |
| 1 | ICON 2005+ Ford F-250/F-350 Dual Steering Stabilizer Kit | 65000 |
| 2 | ICON 1999+ Ford F-250/F-350 Super Duty 4WD 2.0 Steering Stabilizer (Dual Opposing)VS IR(Lift Needed) | 36511 |
| 1 | ICON 2005+ Ford F-250/F-350 Super Duty 4WD 4in 2.5 Series Shocks VS RR CDCV Bolt-In Conversion Kit | 61721C |
| 1 | ICON 2005+ Ford Super Duty Rear Fixed Front Upper Links | 164501 |
| 1 | ICON 05-10 Ford Super Duty 4 Link Frame Bracket Kit | 164500 |
| 1 | ICON 2005+ Ford Super Duty Front Lower Adjustable Link Kit | 164502 |
Downloads & Resources
Application & fitment
Fitment has not been independently verified for your vehicle. Confirm the manufacturer application against your year, make, model, trim, and modifications before ordering.
Shipping & availability
Processing and carrier timing vary by stock status and destination. Final shipping services and costs are confirmed at checkout.
